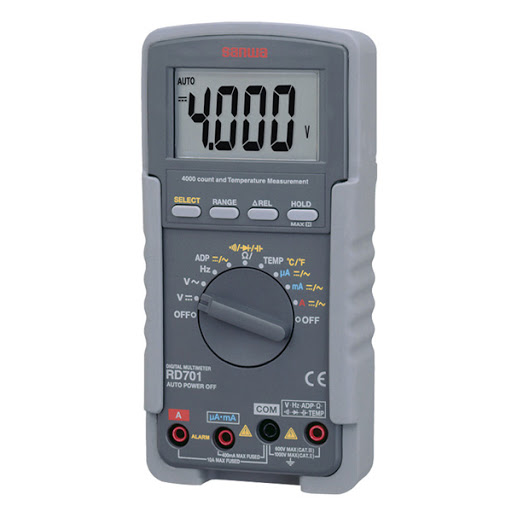

Sanwa RD701 数字万用表(真有效值,0.3%)



- DCV: 400m/4/40/400/1000V  ±(0.03%+4)  0.1mV
- ACV: 400m/4/40/400/1000V  ±(1.5%+5)  0.1mV
- DCA: 400μ/4000μ/40m/400m/4/10A±(1.2%+3)  0.1μA
-ACA: 400μ/4000μ/40m/400m/4/10A±(1.5%+4)  0.1μA
- Ω resistor: 400/4k/40k/400k/4M/40MΩ±(0.6%+4)  0.1Ω
-Capacitance : 500n/5μ/50μ/500μ/3000μF±±(2.5%+6)  0.01nF
-Frequency : 50Hz~1MHz  ±(0.5%+4)  0.01Hz
-Banwidth : 50~500Hz
-Temperature : -20℃~300℃đo kiểu K) ±(2%+3)   1℃
- Sampling rate : 3 times / sec
-Auto Ranges,True RMS
--Pin: 6LF22(9V)
- H179 x W187 x D55mm /460g
-Standard accessories included : Test Lead(TL-23a), Thermocouple K type(K-250PC), Holster(H-50), Instruction Manual


Detail
Features:
■3-3 / 4 digits 4000 count
■0.3% best accuracy
■AC True RMS ※RD701 only
■Capacitance measurement
※Not suitable for measurement of condensers with large leak   current.
■K type temperature
※Optional accessory K-AD is necessary.
※K type temp. sensor K-250PC is included as a standard ac  cessory
■Frequency measurement
※Input voltage : 20VACrms and under
※Input signal : sign wave or square wave with 40%-70% duty
※Input sensitivity : 10Hz〜20kHz/0.9Vrms and above
 : 20kHz〜500kHz/2.6Vp or 1.9Vrms and above
 : 500kHz〜1MHz/4.2Vp or 3Vrms and  above
■ADP function (for current sensor)
■Max recording measurement
■Data hold / Range hold  ■Relative value
■Auto power off (30min.) (cancelable)
■Alarm for improper test lead insertion to current  terminal
■Protective holster with wall hanger and lead  holder
■Tilt stand
Display : numeral display 4000 (Hz : 9999, capacitance :5000)
Sampling rate : 3 times / sec. (Hz : 2 times / sec.)
AC frequency bandwidth : 50〜500Hz

Option:
Clamp probe : CL-20D, CL-22AD, CL33DC
HV probe : HV-60
Temperature probe : K-8-800, K-8-650, K-8-300, K-8-500, K-8-250
K type adapter : K-AD
Test lead : TL-21M, TLF-120
Carrying case : C-CD
Clip adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC
