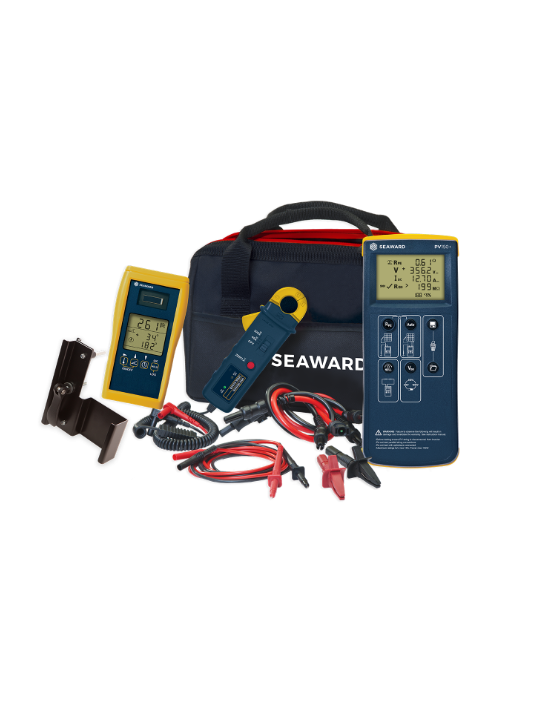

Seaward PV-200紧凑型太阳能光伏测试仪,带有IV曲线追踪完整套件

Technical Specifcation:

Open Circuit Voltage Measurement (PV Terminals)

Display Range: 0.0VDC - 1000VDC

Measuring Range: 5.0VDC - 1000VDC

Resolution: 0.1VDC maximum

Accuracy: ± (0.5 % + 2 digits)

Enunciators: DC voltage polarity correct or reversed

Short Circuit Current Measurement (PV Terminals)

Display Range: 0.00ADC - 15.00ADC

Measuring Range: 0.50ADC - 15.00ADC

Maximum Power: 10kW

Resolution: 0.01ADC maximum

Accuracy: ± (1% + 2 digits)

Earth Continuity Resistance Measurement (4mm Terminals)

Test Voltage Open Circuit: >4VDC, nominal

Test Current into 2 Ω : >200mA

Display Range: 0.00Ω - 199Ω

Measuring Range (EN 61557-4): 0.05Ω - 199Ω

Resolution :0.01Ω maximum

Accuracy :± (2% + 5 digits)

Test Leads Zero :Zero up to 10Ω, by zero button

Visible Warning: ≥30V AC or DC at inputs

Circuitry Protection: Test inhibited if ≥30V AC or DC at inputs

Repeat tests as per IEC61557-4: Approx 4000 1 second test

Insulation Resistance (Auto Test Sequence, PV Terminals and Red 4mm Terminal)

Test Voltage Open Circuit: 250V, 500V, 1000V (as per IEC61557-2)

Test Voltage Specifcation: -0% +20% (open circuit)

Test Voltage @ 1mA: >1mA into UN x (1000Ω/V)

Test Current Short Circuit: <2mA

Display Range :0.05MΩ - 200MΩ

Measuring Range (EN 61557-2): 0.05MΩ - 200MΩ

Resolution :0.01MΩ maximum

Accuracy: 0.05MΩ - 100MΩ ± (5% + 5 digits)

101MΩ - 200MΩ ± (10% + 5 digits)

Visible Warning: ≥ 30V AC or DC at inputs

Circuitry Protection :Test inhibited if ≥ 30V AC or DC at inputs

Repeat tests as per IEC61557-4 :Approx 4000 1 second tests

Insulation Resistance (Point to Point, 4mm Terminals)

Test Voltage Open Circuit: 250V, 500V, 1000V (as per IEC61557-2)

Test Voltage Specifcation: -0% +20% (open circuit)

Test Voltage @ 1mA: >1mA into UN x (1000Ω/V)

Test Current Short Circuit: <2mA

Display Range: 0.05MΩ - 300MΩ

Measuring Range (EN 61557-2): 0.05MΩ - 300MΩ

Resolution: 0.01MΩ maximum

Accuracy: ± (5% + 5 digits)

Visible Warning :≥30V AC or DC at inputs

Circuitry Protection: Test inhibited if ≥ 30V AC or DC at inputs

Repeat tests as per IEC61557-4 :Approx 4000 1 second tests

Rpe Voltage Measurement (4mm Terminals)

Display Range :30V - 440VAC/DC

Voltage Measuring Range :30V - 440VDC

30V - 440VAC 50-60Hz

Resolution :1V

Accuracy :± (5% + 2 digits)

Operating Current (via AC/DC Current Clamp)

Display Range: 0.1A - 40.0A

Current Measuring Range :0.1A - 40.0A DC

0.1A - 40.0A AC 50-60Hz

Resolution: 0.1A

Accuracy :± (5% + 2 digits)

DC Operating Power (via AC/DC Current Clamp and PV Terminals)

Display Range: 0.00kW - 40kW

Measuring Range: 0.50kW - 40kW

Resolution: 0.01kW

Accuracy: ± (5% + 5 digits)

General Specifcation:

Instrument Dimensions and Weight

Weight :1.04kg / 2.3lb

Dimensions: 26.4 x 10.7 x 5.8cm / 10.4 x 4.2 x 2.3”

Display :Custom LCD with backlight

Power Source: 6 x 1.5V AA cells

Battery life :>1000 test sequences

Auto power down User programmable

Onboard memory Up to 999 complete test datasets

Connectivity

USB download to PC (CSV format)

Wireless “Solarlink TM” to Survey 200R (range ~30m/100ft)

NFC transfer of data to PVMobile Android App

iOS device not supported

App compatibility

Compatible with Android version 4.2 Jelly Bean

iOS devices not supported

Software compatibility

Compatible with SolarCert software (English language only)

INCLUED

  • Seaward PV200 Solar PV Tester
  • AC/DC Current Clamp
  • 2 x MC4 Test Leads
  • 2 x 1.5mm Test Leads/Probes + Alligator Clips
  • Type A to Mini B USB Cable
  • 6 x Alkaline Batteries (AA), 1.5V
  • Quick Start Guide
  • Rugged Carrying Bag
  • Manufacturer's Calibration Certificate
  • Download Link for Entry-Level PC Datalogger Software
  • Operating Instructions
  • USB Driver for Download to PC
  • SolarCert Elements V2 Software Demo
Detail

http://www.seawardsolar.com/userfiles/pv200-solar-pv-tester-curve-tracer.php

DATASHEET
