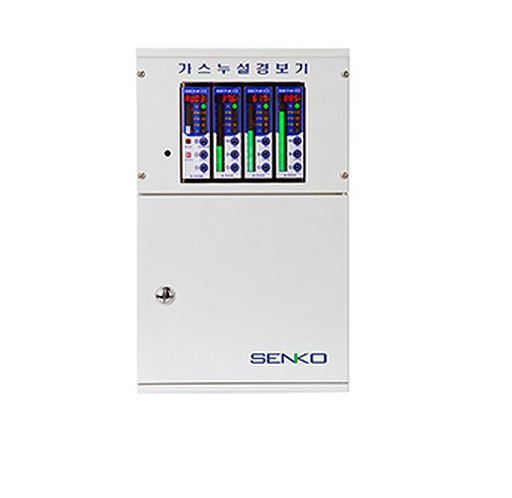

SENKO SI-100IM(6CH)多控制面板 (有毒气体、可燃气体、氧气,6频道)

- Main Alarm Unit SI-100IM (includes 1 set):
+ Measuring Range: 0 to 30V FND Digital Display,
+ Measuring Display: 4Digit FND Digital Display, 18 LED Bar Graph, Battery, B/Z Stop (V Unit Display)
+ Alarm Display: Power, Fault, 1st, 2nd, 3rd Alarm ICON
+ AU01~AU10 (Consecutive Alarm Unit Display)
+ Alarm Sound: Buzzer 92dB
+ Output Signal:1st, 2nd, 3rd (SPDT) Relay Dry Contact, 12V.DC
+ Alarm Set: SI-100IA
+ Alarm Reset: Manual Total & HMI
+ Self Test: Battery Test Switch (AC/DC)
+ Operating in/out: RS-485 Modbus (SI-100ICU Option)
+ Scan Time: 10ms
+ Back-Up Battery: Ni-Cd Battery 18V 600mA (3, 6Channel)
+ Operating Power: 110/220V.AC 50/60Hz (or 24V.DC)
+ Dimensions: Channel Card : 40(W) x 130(H) x104(D)
- Alarm Display Unit: SI-100IA (include 6 sets):
+ Measuring Range: 0.000 to 9999 Digital User Setting
+ Measuring Display: 4Digit F.N.D Digital Display, 40 LED Bar Graph (%, PPM, LEL Unit Display)
+ Alarm Display: Power, Fault, 1st, 2nd, 3rd Alarm ICON, 40 Red Arrow LED Graph(◁)
+ Input Signal: 4-20mA Full Scale
+ Output Signal: Fault, 1st, 2nd, 3rd (SPDT) Relay Dry Contact, 4-20mA, 12V.DC
+ Accuracy: FND Digital ±1% Full Scale or 1Digit, LED Bar ±1% Full Scale or 1Digit
+ Alarm Set:1st, 2nd, 3rd Alarm Setting
+ 40 Red Arrow LED Graph(◁) Setting
+ Alarm Reset: Manual Local
+ Self Test : Test Switch (0~Max Range 10sec)
+ Operating in/out: RS-485 Modbus (SI-100ICU Option)
+ Scan Time: 10ms
+ Dimensions: Channel Card : 40(W) x 130(H) x104(D)
- PANEL CASE(including POWER & BATTERY) (1 set)
