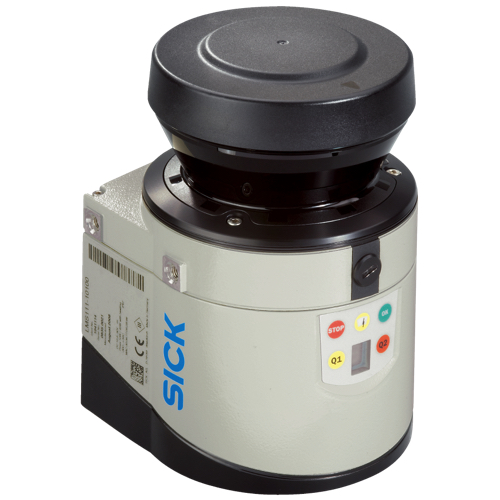

SICK LMS101-10000 2D 激光雷达传感器 (10.8 V DC ... 30 V DC; 0.5 m ... 20 m)

Application: Indoor

Light source: Infrared (905 nm)

Laser class: 1 (IEC 60825-1:2014, EN 60825-1:2014)

Aperture angle: Horizontal 270°

Scanning frequency: 25 Hz / 50 Hz

Angular resolution: 0.25° / 0.5°

Working range: 0.5 m ... 20 m

Scanning range: At 10% remission 18 m / At 90% remission 20 m

Connection type: 1 x system plug with screw terminal block

Supply voltage: 10.8 V DC ... 30 V DC

Power consumption: Typ. 8 W

Housing color: Gray (RAL 7032)

Protection class: III (EN 50178 (1997;10))

Enclosure rating: IP65 (EN 60529, Section 14.2.5)

Weight: 1.1 kg

Dimensions (L x W x H): 105 mm x 102 mm x 152 mm

Ethernet: ✔, TCP/IP
