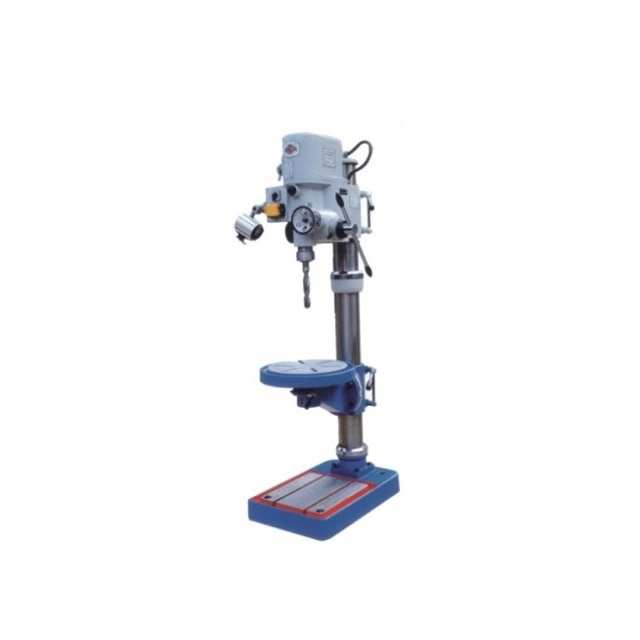

SMAC ZN-32 立式钻床

Max drilling diameter and tapping diameter: Φ25/M20

Max travel of spindle: 150

Max distance from spindle to generating line of column: 300

Max distance between spindle end to the worktable surface: 800

Max distance from spindle end to the surface of base worktable: 1225

Max travel of spindle box: 270

Max travel of worktable and bracket (Mannual/Mechanical): 550

Spindle taper bore: 4

Spindle speed steps: 12

Spindle speed range: 78-2500

Dimension of worktable: mx 190^2

Effective working area of worktable: 365x415

Power of motor: 1/1.3/1.7

Machine dimension: 835x510x1730

Packing dimension: 940x570x2120

Net weight/Gross weight: 430/475

Accessories: Shalf sleeve for taper shank tool, Key type drill chuck, Connecting bar for drill chuck, Wedge for taper shank tool, Double open end spanner.
