SterlingSensors RFITA37501HP0A60 工业RTD温度传感器 (Pt100 Class B 11x750mm; -75~250°C)


Specification

Industrial RTD Sensor Assembly (Pt100)

Features

  • Pt100 Class B sensor
  • Spring loaded removable insert
  • IP68 weatherproof head
  • 316 stainless steel wetted part

Applications

  • Machinery, Plant & Tank Measurement
  • Industrial Process Control
  • Pharmaceuticals

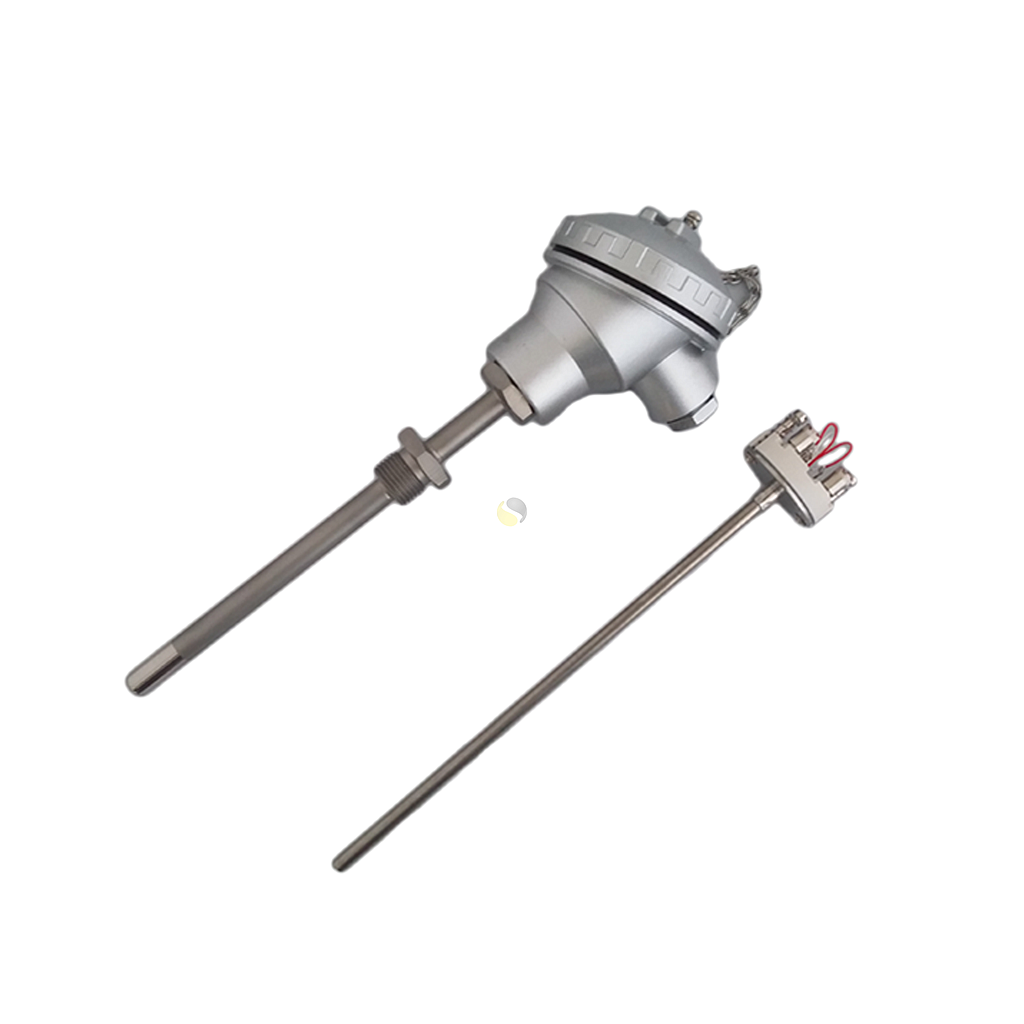

316 Stainless Steel Sheath with Pt100 RTD Removable Insert

Description

Part Number

11mm dia x 100mm long with 50mm lagging length

RFITA31001HP0A60

11mm dia x 150mm long with 50mm lagging length

RFITA31501HP0A60

11mm dia x 200mm long with 50mm lagging length

RFITA32001HP0A60

11mm dia x 250mm long with 50mm lagging length

RFITA32501HP0A60

11mm dia x 300mm long with 50mm lagging length

RFITA33001HP0A60

11mm dia x 400mm long with 50mm lagging length

RFITA34001HP0A60

11mm dia x 500mm long with 50mm lagging length

RFITA35001HP0A60

11mm dia x 750mm long with 50mm lagging length

RFITA37501HP0A60

11mm dia x 1000mm long with 50mm lagging length

RFITA301M1HP0A60

4-20 mA In Head Transmitters

Description

Part Number

ATEX RTD

IXATEP

RTD in-head Transmitter

IXINHP

Datasheet
