SterlingSensors RMMHI36MM150006M 带微型（KSE）头的矿物绝缘RTD温度传感器 (Pt100 3-wire class B Ø6x150mm; -100~600°C)


Specification

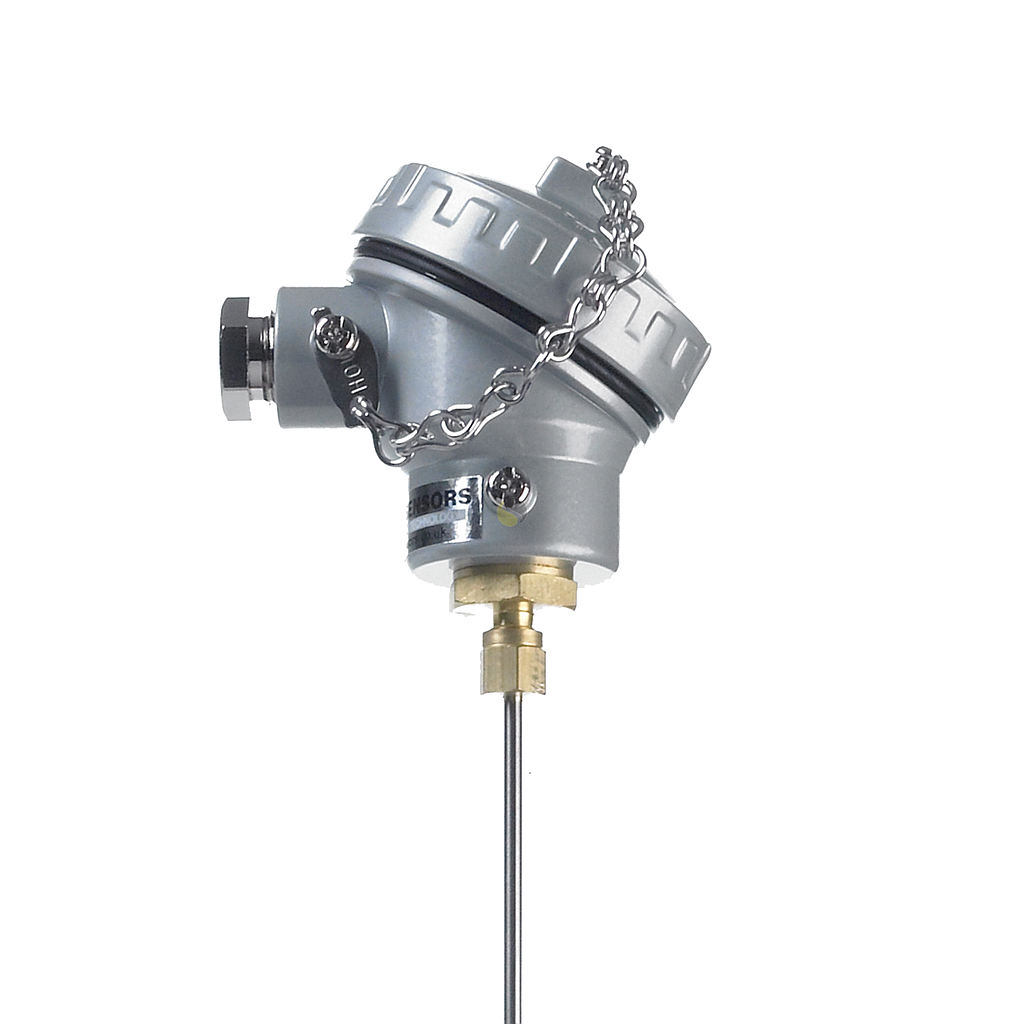

Mineral Insulated RTD with Miniature (KSE) Head

Features

  • Mineral insulated cable
  • IP68 weather-proof KSE head is ideal where access is restricted
  • Can be formed and shaped to fit the process
  • Can be made in long lengths

Application

  • Research and development
  • Oil & Gas
  • Marine and transport

6mm Diameter 316 Stainless Steel

Description

Part Number

3-wire class B 6mm dia x 100mm (316)

RMMHI36MM100006M

3-wire class B 6mm dia x 150mm (316)

RMMHI36MM150006M

3-wire class B 6mm dia x 250mm (316)

RMMHI36MM250006M

3-wire class B 6mm dia x 300mm (316)

RMMHI36MM300006M

3-wire class B 6mm dia x 400mm (316)

RMMHI36MM400006M

3-wire class B 6mm dia x 500mm (316)

RMMHI36MM500006M

3-wire class B 6mm dia x 1000mm (316)

RMMHI36MM01M006M

Transmitters

Description

Part Number

RTD in-head Transmitter

IXINHP

ATEX RTD

IXATEP
