SterlingSensors RMNHI36MM250006N 带标准（KNE）头的矿物绝缘RTD温度传感器 (Pt100 3-wire class B Ø6x250mm; -100~600°C)


Specification

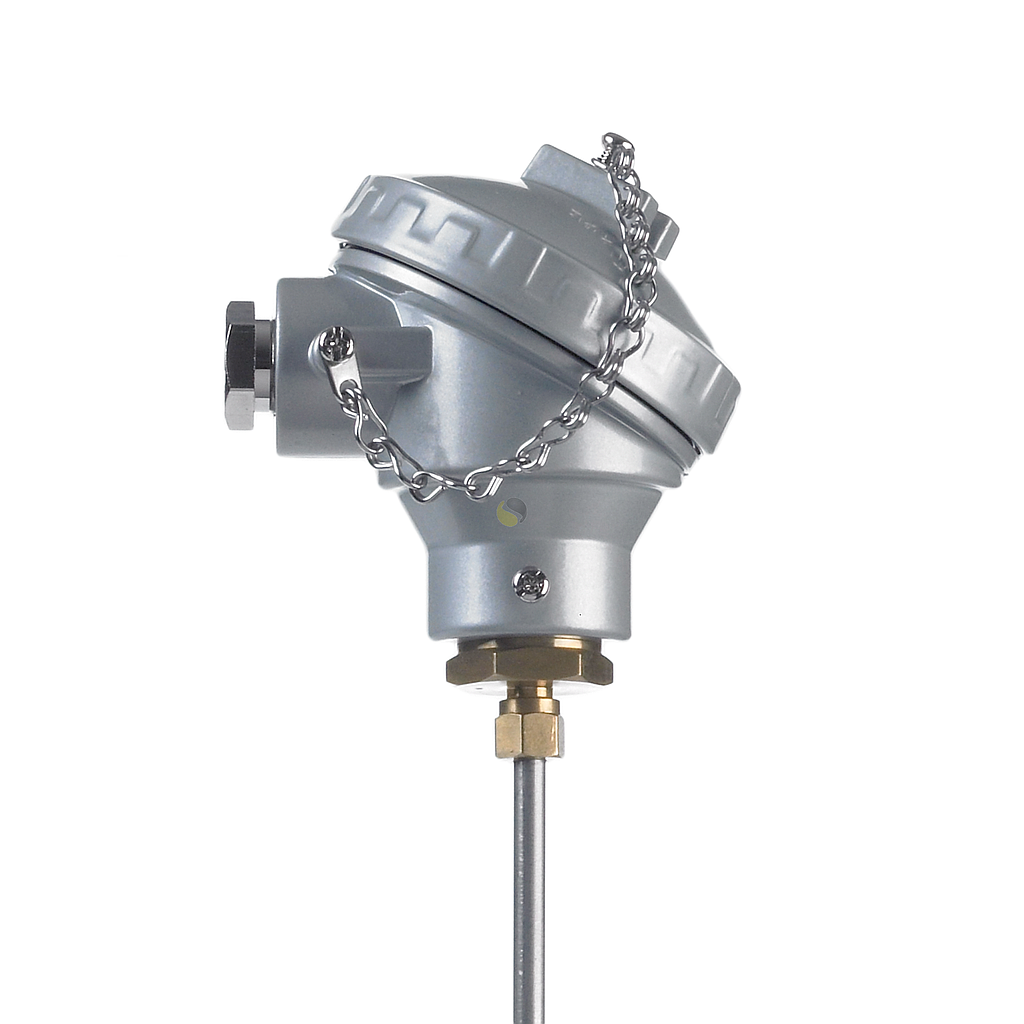

Mineral Insulated RTD with Standard (KNE) Head

Features

  • Mineral insulated probe
  • Wide temperature range
  • Can be formed and shaped to fit the process
  • IP68 weather-proof KNE head
  • Can be made in long lengths

Application

  • Manufacturing processes
  • OEM application
  • Marine and transport

6mm Diameter 316 Stainless Steel

Description

Part Number

3-wire class B 6mm dia x 150mm (316)

RMNHI36MM150006N

3-wire class B 6mm dia x 250mm (316)

RMNHI36MM250006N

3-wire class B 6mm dia x 300mm (316)

RMNHI36MM300006N

3-wire class B 6mm dia x 400mm (316)

RMNHI36MM400006N

3-wire class B 6mm dia x 500mm (316)

RMNHI36MM500006N

3-wire class B 6mm dia x 1000mm (316)

RMNHI36MM01M006N

Transmitters

Description

Part Number

RTD in-head Transmitter

IXINHP

ATEX RTD

IXATEP

Datasheet
