SterlingSensors EGL1603400B 160mm压力表，带e-Gauge®-lite 4-20mA压力变送器 (0~400 bar)

1/2" BSP Parallel, Bottom Entry; 0-6000 PSI (0-400 bar) pressure range

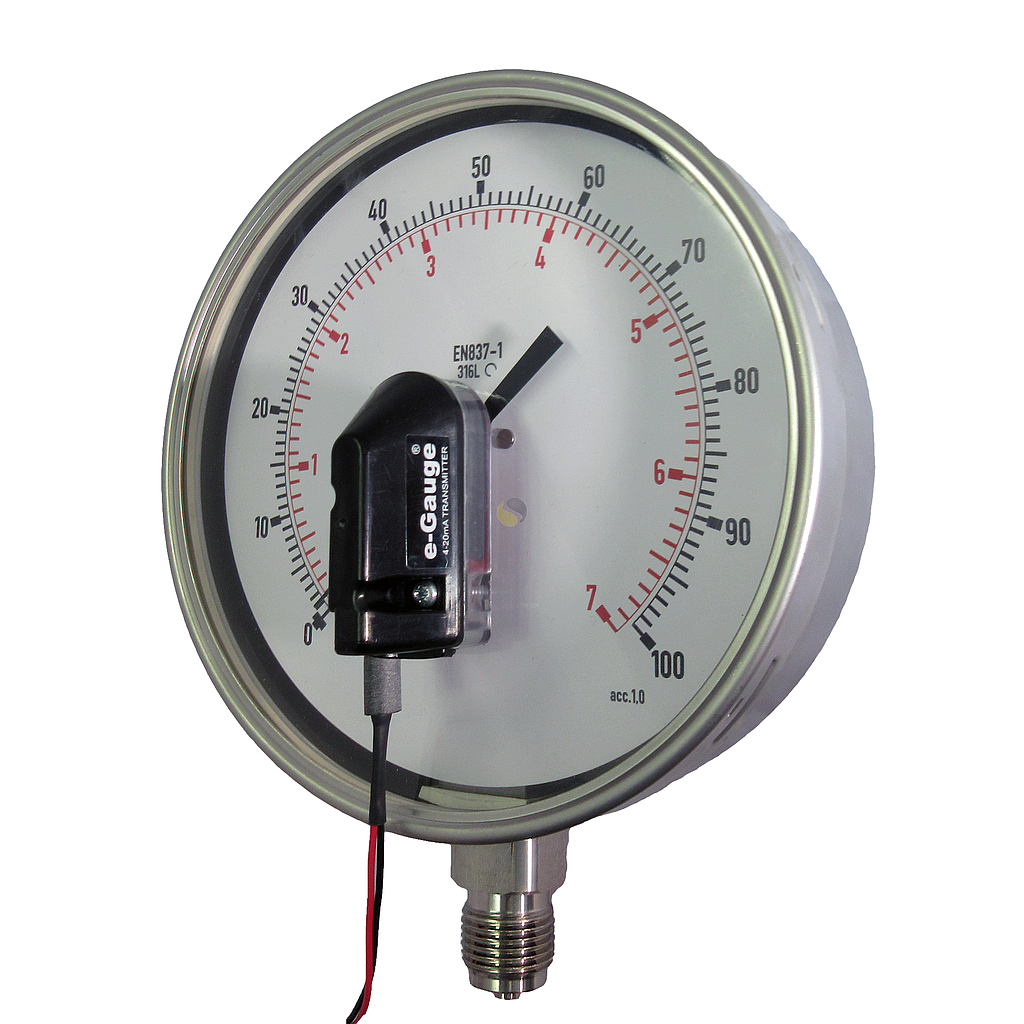

Product: 160mm Stainless Steel Pressure Gauge with e-Gauge-lite

Accuracy: EN837-1 Class 1.0 (±1.0% FSD)

Connection: ½” BSP Parallel

Dial: 160mm 304 St/St bayonet type bezel

Pressure Range(s): -1 to 700 bar

Material: 316 St/St wetted parts

Ingress Protection: IP65

Operating Temp: -20 to +60°C

Window: Laminated Safety Glass

Part Number: EGL160

Datasheet
