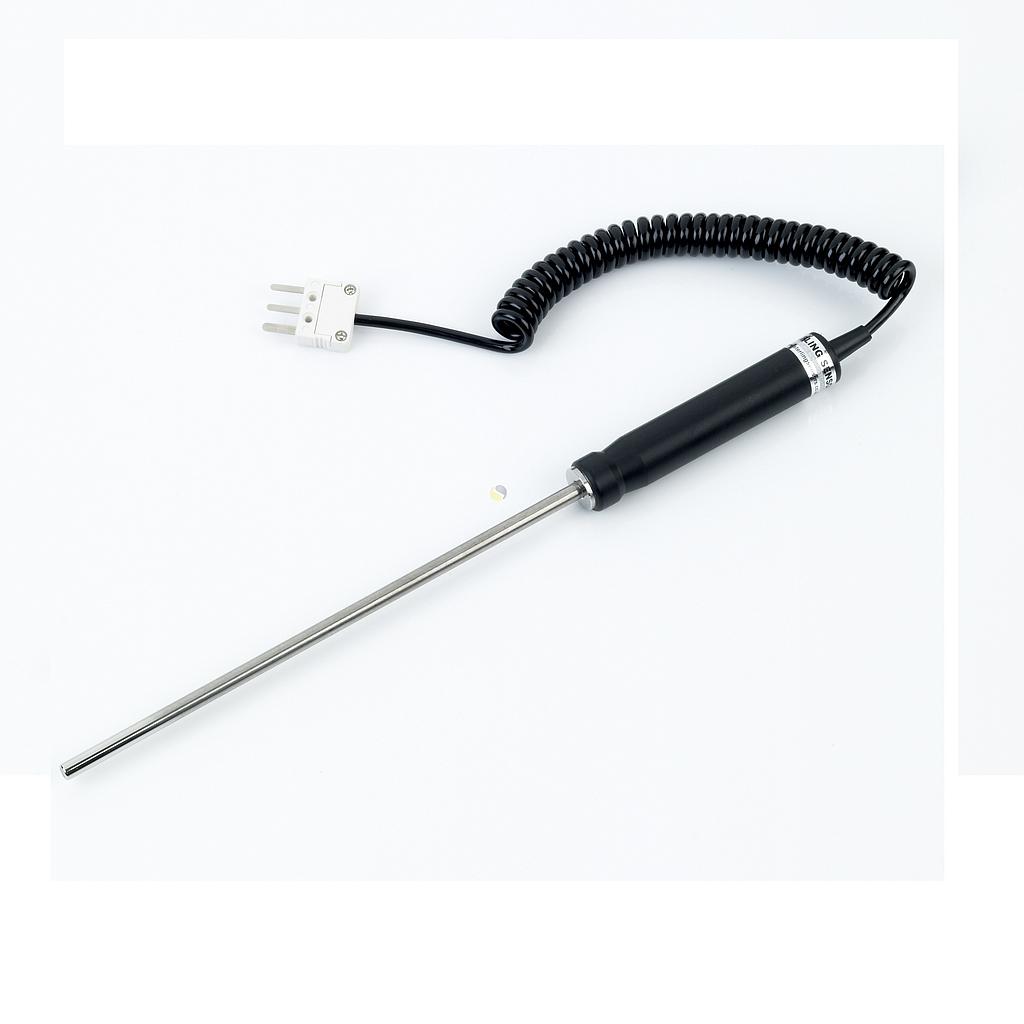

SterlingSensors HIIRT31/82501MC1 Pt100浸入式温度传感器 (3-wire 1/8"x250mm; -75~200°C)


Specification

Specification for Pt100 Immersion Probe

Features

  • Rated to 200°C
  • 3-pin mini-plug
  • Rounded tip
  • 3.2mm (1/8”) or 4.76mm (3/16”) diameters available

Application

  • HVAC
  • Food & Beverage
  • Dry goods

1/8" Inch Diameter Probe

Description

Part Number

3-wire 1/8" x 150mm curly lead and 3-pin plug

HIIRT31/81501MC1

3-wire 1/8" x 200mm curly lead and 3-pin plug

HIIRT31/82001MC1

3-wire 1/8" x 250mm curly lead and 3-pin plug

HIIRT31/82501MC1

5mm Diameter Probe

Description

Part Number

3-wire 5mm x 150mm curly lead and 3-pin plug

HIIRT35MM1501MC1

3-wire 5mm x 200mm curly lead and 3-pin plug

HIIRT35MM2001MC1

3-wire 5mm x 300mm curly lead and 3-pin plug

HNIRT35MM3001MC1

Datasheet
