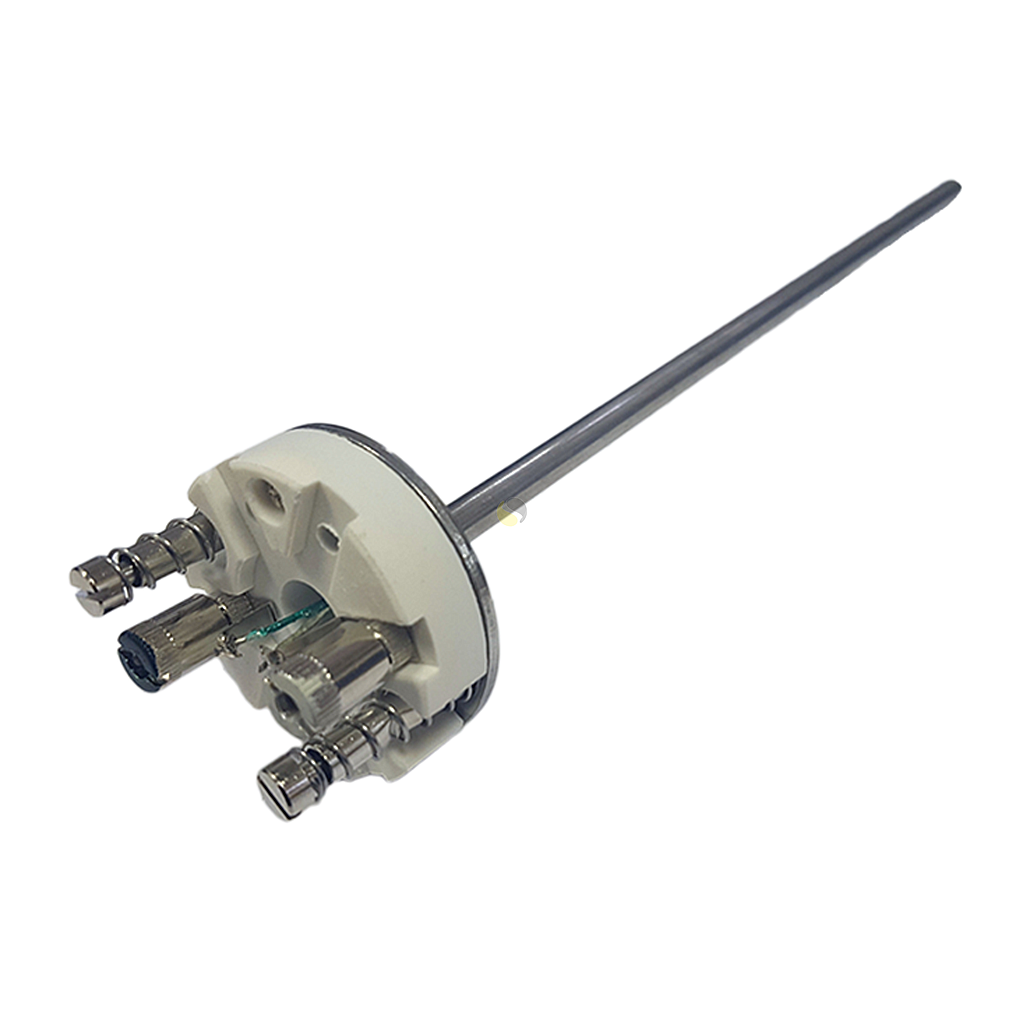

Sterling Sensors TFINSK3MM5000060 带陶瓷块的弹簧加载热电偶插件温度传感器 (Type K 3x500mm; -75~250°C)

Specification

Features

• Simple to replace for plant efficiency

• Spring loaded promotes good thermal contact and fast reliable response

• Optional transmitter that replaces the ceramic terminal block

• Bespoke manufactured options

Applications

• Pipes

• Vessels

• Machinery

• Chemical & Plants

3mm Diameter type K

Description	Part Number
Type K 3mm x 100mm	TFINSK3MM1000060
Type K 3mm x 150mm	TFINSK3MM1500060
Type K 3mm x 200mm	TFINSK3MM2000060
Type K 3mm x 250mm	TFINSK3MM2500060
Type K 3mm x 300mm	TFINSK3MM3000060
Type K 3mm x 400mm	TFINSK3MM4000060
Type K 3mm x 500mm	TFINSK3MM5000060
Type K 3mm x 750mm	TFINSK3MM7500060
Type K 3mm x 1000mm	TFINSK3MM01M0060

6mm Diameter type K

Description	Part Number
Type K 6mm x 100mm	TFINSK6MM1000060
Type K 6mm x 150mm	TFINSK6MM1500060
Type K 6mm x 200mm	TFINSK6MM2000060
Type K 6mm x 250mm	TFINSK6MM2500060
Type K 6mm x 300mm	TFINSK6MM3000060
Type K 6mm x 400mm	TFINSK6MM4000060
Type K 6mm x 500mm	TFINSK6MM5000060
Type K 6mm x 750mm	TFINSK6MM7500060
Type K 6mm x 1000mm	TFINSK6MM01M0060

8mm Diameter type K

Description	Part Number
Type K 8mm x 100mm	TFINSK8MM1000060
Type K 8mm x 150mm	TFINSK8MM1500060
Type K 8mm x 200mm	TFINSK8MM2000060
Type K 8mm x 250mm	TFINSK8MM2500060
Type K 8mm x 400mm	TFINSK8MM4000060
Type K 8mm x 500mm	TFINSK8MM5000060
Type K 8mm x 750mm	TFINSK8MM7500060
Type K 8mm x 1000mm	TFINSK8MM01M0060

Transmitters (Optional)

Description	Part Number
Type K In-head Transmitter	IXINHK
Type J In-head Transmitter	IXINHJ
Type T In-head Transmitter	IXINHT
Type K ATEX Thermocouple	IXATEK
Type J ATEX Thermocouple	IXATEJ
Type T ATEX Thermocouple	IXATET

Datasheet
