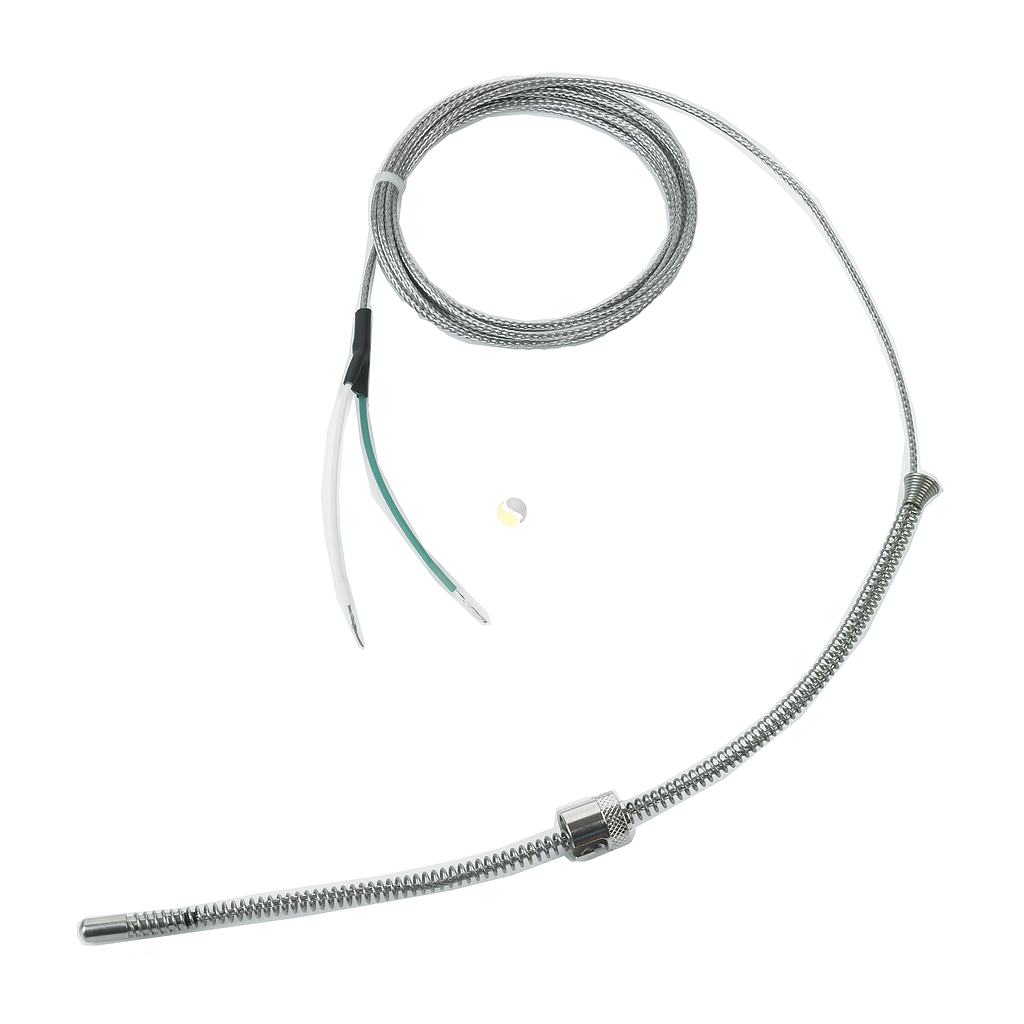

SterlingSensors TGBAYK4.702M0AS7 卡口热电偶温度传感器 (Type K 2M 4.7mm; 11.5mm ID 1-slot; -50~400°C)


Specification

Specification

Features

  • Adjustable spring loaded tip
  • 11.5mm single slot or 12.5mm double slot cap with 15, 16 or 17mm caps available on request
  • For use up to 400°C
  • Complete range of single or double slot adaptors with lengths to suit application

Application

  • Plastic extrusion machines
  • General purpose machinery

Type K Bayonet Probes

Description

Part Number

Type K 2M 4.7mm with 11.5mm ID single slot fitting

TGBAYK4.702M0AS7

Type K 2M 6mm with 12.5mm ID double slot fitting

TGBAYK6MM02M0AS7

Type J Bayonet Probes

Description

Part Number

Type J 2M 4.7mm with 11.5mm ID single slot fitting

TGBAYJ4.702M0AS7

Type J 2M 6mm with 12.5mm ID double slot fitting

TGBAYJ6MM02M0AS7

Bayonet Adapters

Description

Part Number

1/8 BSP Adapter 11mm Diameter x 22mm long (single peg)

CYBYA0011022SP60

1/8 BSP Adapter 11mm Diameter x 35mm long (single peg)

CYBYA0011035SP60

1/4 BSP Adapter 12mm Diameter x 25mm long with hex (double peg)

CYBYA0012025DP60

Datasheet
