设置衰减器/终端SMA Tekbox TBAS2

Manufacturer: Tekbox

Model: TBAS2

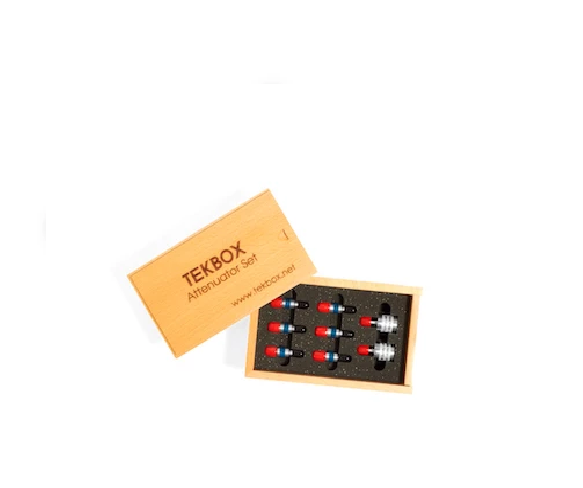

The TBAS2 RF attenuator set consists of a 3dB, 6dB, 10dB, 15dB, 20dB and 20dB attenuator in a beech wood box. Furthermore it contains two pieces SMA 50 Ohm terminations.

Attenuators: 3, 6, 10, 15 dB      +/- 0.5 dB

                       20, 30 dB             +/- 0.8 dB

Frequency Range:DC - 6GHz, VSWR <1.2

Power rating:2W @ -55 to 70°C; up to 125°C with 50% power de-rating

Connectors:N-male/N-famale; bidirectional

Termination: 50 Ohm

Frequency Range: DC - 6GHz, VSWR <1.1

Power rating: 2W @ -55 to 70°C; up to 125°C with 50% power de-rating

Connectors: N-male

Manual
