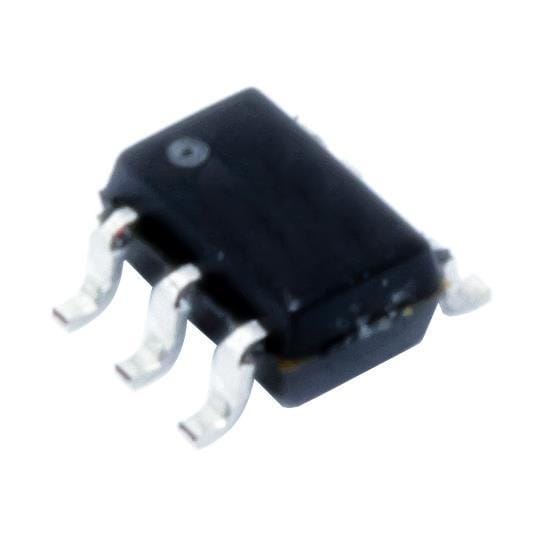

Texas Instruments SN74AUP1G126DCKR Buffers & Line Drivers LP Single Bus Buffer Gate A 595-SN74AUP1G126DCKT

Width: 1.25 mm

Height: 0.9 mm

Length: 2 mm

Function: Buffer/Line Driver

Polarity: Non-Inverting

Logic Type: CMOS

Technology: CMOS

Output Type: 3-State

Unit Weight: 20 mg

Logic Family: AUP

Mounting Style: SMD/SMT

Input Signal Type: Single-Ended

Quiescent Current: 500 nA

Number of Channels: 1 Channel

Supply Current - Max: 500 nA

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 800 mV

Number of Input Lines: 1 Input

Number of Output Lines: 1 Output

Propagation Delay Time: 18.7 ns, 12.5 ns, 10.1 ns, 7.2 ns, 6 ns

Low Level Output Current: 4 mA

Operating Supply Current: 900 nA

Operating Supply Voltage: 1.8 V

High Level Output Current: - 4 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
