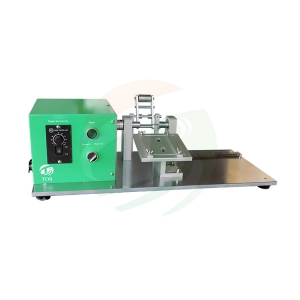

TOB TOB-JR135-C 半自动柱形电池络筒机 (40W, 0-170 RPM)

Working Voltage: AC110V/220V, 50/60HZ

Power: 40W

Winding Speed: 0 - 170 RPM Adjustable

Winding Shaft

Dimensions: 4mm(OD) x 65mm(L) for 18650 cylinder battery core

Other sizes like 26650 and 32650 are available upon request

Winding Mode: Switchable between clockwise and counterclockwise

Output: 70-100EA/h, according to battery size and maunal

Product Dimensions(L*W*H): 360*310*280mm

Net weight: About 20kg (45 lbs)

Application Notes

This machine can be used for cylinder battery with round winding shaft,

and you can also choose the square winding shaft for pouch cell core winding,

We will supply with the suitable winding accessories according to your battery model
