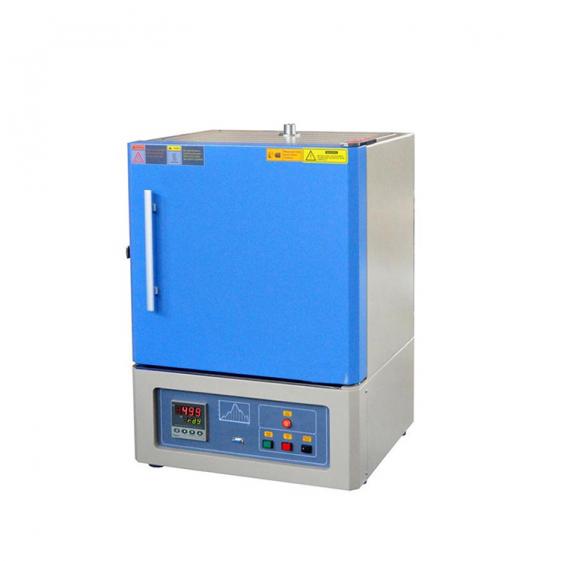

Size: 12" x 12" x 12", 300*300*300mm
Capacity: 27 liters
7 KW Max. at 10oC/min to 1200oC
40 A fuse (installed)
Voltage: 110~240V AC, Single phase, 50/60Hz
1200°C Max (< 3 hour)
Temperature Stability: ±1°C at 1000°C
Temperature Uniformity: ±3.45°C at 1000°C
Max. Heating Rate: 10°C/min
PID automatic control with 30 programmable segments for precise control.
Built-in over temperature alarm and protection
+/- 1 ºC temperature accuracy.
K type thermocouple installed for immediate use.
Gas Fitting & Exhaust
One 1/4" barbed Gas Inlet installed on back panel of furnace
One gas exhaust port is built on the top of the furnace casing.
Product Dimensions: 24" x 26" x 22" (D x H x W) 60*66*55cm
Shipping Dimensions: 48" x 40" x 49" (D x W x H) 122*100*125cm
Shipping Weight: 350 lb, 160kg
1, For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min.
Cooling rate shall also not exceed 10 °C /min.
2, This furnace lacks vacuum sealing, toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision.
3, Small cracks may appear on surface of refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating
