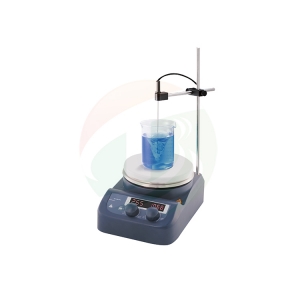

TOB MS-H280-Pro 实验室热板磁力搅拌器 (100-1500rpm)

Work plate Dimension: φ135mm(5 inch)

Work plate material: stainless steel cover  with ceramic

Motor type: Brushless DC motor

Motor rating input: 5W

Motor rating output: 3W

Power: 515W

Heating output: 500W

Voltage: 100-120/200-240V  50/60Hz

Stirring positions: 1

Max. stirring quantity[H2O]: 3L

Max. magnetic bar[length]: 50mm

Speed range: 100-1500rpm

Speed display: LCD

Temperature display: LCD

Speed display resolution: ±1rpm

Heating temperature range: Room temp.-280, increment 1°C

Control accuracy of work plate: ±1°C(<100°C) & ±1%(>100°C)

Over  heat Protection: 320°C

Temperature  display accuracy: ±1°C

External  temperature sensor: PT1000 (accuracy ±0.5°C)

"Hot" warning: 50°C

Protection class: IP21

Dimension [W x D x H]: 150×260×80mm

Weight: 1.8kg

Permissible ambient temperature and humidity: 5-40℃ 80%RH
