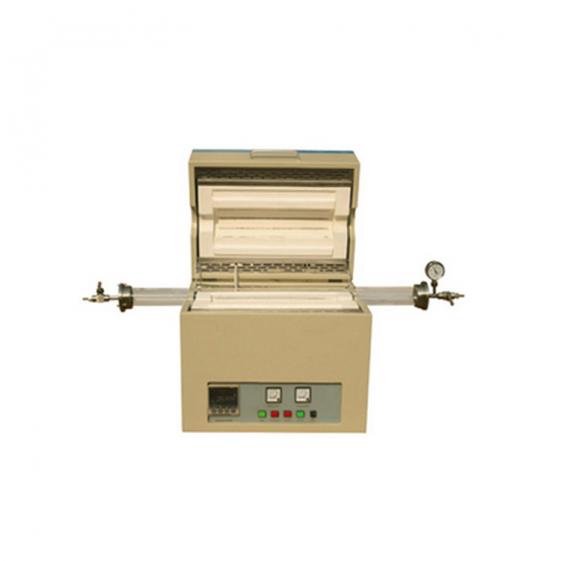

TOB TOB-OTL1200-II Degree Tube Furnace (1200℃,2.5KW)

Power: 2.5 KW

Tube size(mm): Φ80×1000mm

Voltage: AC110V/220V

Heating Zone Length: 420mm

Max Heating Temperature: 1200℃

Heating element: Electric resistance wire

Temperature controller

40 program temperature control system,

With over temperature, broken accidentally protection function,

6 groups of PID adjustment

Control precision of + / - 1 ℃

Furnace chamber: Polycrystal alumina fiber

Tube material: Gas refining quartz tube

Vacuum Flange & Fitting Ports: Stainless steel flange with Gas nozzle, valve, pressure gauge

Pressure measure system: Pressure gauge (Resistance vacuum gauge can be chosen according requirements)

Air intake control: Flow meter (Protons flow controller can be chosen according requirements )

Vacuum system: Vacuum pump can be chosen
