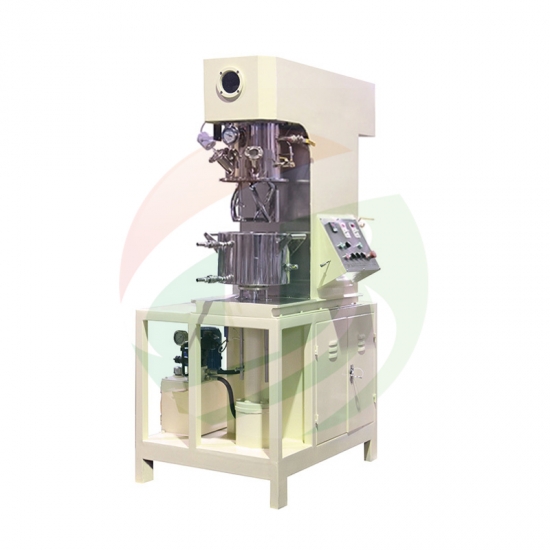

Design capacity: 3.8 liters
Working capacity: 1~3 liters
Hood: Cover flange with o-ring in groove ;
Register inside or outside hood to accurately locate and fix bowl in place ;
Two sight glass viewing ports ; One vacuum connection with ball valve and one vacuum gauge .
One solids charging port(chute) Ø40.
Dia. 180×h.150 (Mix bowl)
With jacket for water/oil at 90psig and 350F .
Four wheels on bowl bottom .
Two pull handles on bowl side .
No discharge valve on bowl bottom .
Characteristics of mixing movement: Two low-speed mixing blades and one H-speed disperser rotate on their own axis as they travel around the mix bowl interior, in order to fully mix two or more materials together well .
Standard supply: Quarter-twist blades / Removable (304 St. St.)
H.-S. Disperser: Ø50 sheared blades on dispersing shaft (304 St. St.)
Power motor 1 for agitating / scraping and planetary: 0.75kw (e.g. 1.0HP), 380v/3phase/50hz, 1500rpm
Power motor 2 for H.-S. dispersing: 1.1kw (e.g. 1.5HP), 380v/3phase/50hz, 3000rpm
Reducer: Cycloid pin type: BLY0-i=23 (S. Fa.=1.0)
Self-agitating speed: 0~64rpm (based on 50hz)
Planetary / Scraping speed: 0~52rpm (based on 50hz)
Self-dispersing speed: 0~5700rpm (based on 50hz)
Linear velocity: 0~16m/s (based on 50hz)
Scraper arm: Removable (304 St. St.+ PTFE)
Speed control: By frequency inverter(converter)
a. Sealed planetary gearbox .
b. 304 construction : gearbox exterior , hood , scraper arm.
c. Vacuum construction up to -0.098Mpa , with vacuum separator pot ; Vacuum pump 2X-2.
d. O-rings and seals in VQM or Viton (FPM) .
e. H.-S. Bearings : FAG from Germany or NSK from Japan
Raising and lowering the bowl
By hydraulic lift by oil designed for 0.6~1.9MPa
Double action piston Ø50/32×250, 5MPa , Total 1 (one) pc .
Power pack by power motor
Stroke : appr. 250mm
Temp. show: A flush-mounted product temperature probe is required in the lower sidewall area of the bowl. It include a quick-release plug.
Spare parts kit: O-rings, scraper, lip seals
