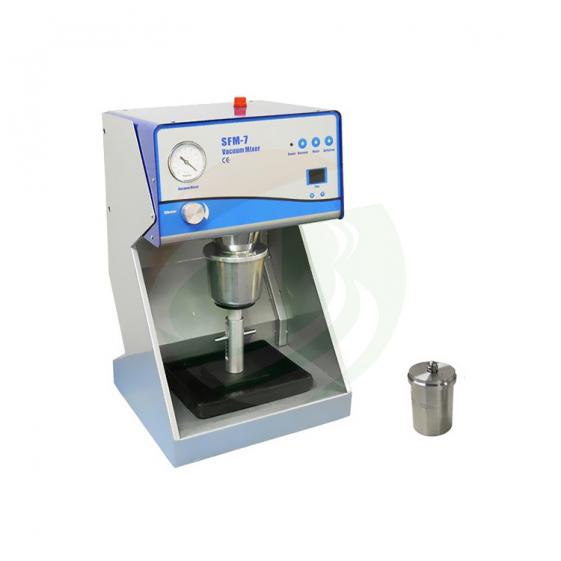

TOB TOB-SFM-7 真空混合器,具有150ml 和 500ml 混合瓶(320 rpm)

Voltage Input: Single Phase 110VAC or 220VAC, Customized

Power: 150W

Power plug: Supply with required power plug according to different country

Rotary Speed: 320 rpm

Mixing Container:

Two vacuum sealed containers are included.

One 150ml stainless steel and one 500ml aluminum

Mixing blade is built in top of cover of container.

Vacuum pump & Vacuum Level:

Built in single stage vacuum pump

Vacuum Level: -0.08~0.09 Mpa

Vibration Plate: Vibrating at 1000 HZ

Dimensions (L*W*H): 13''L x 12''W x 21''H, 330*310*510mm

Shipping Dimensions: 16''L x 19''W x 24''H, 420*500*600mm

Net Weight: 70 lbs, 30kg

Compliance: CE certified

Application Notes:

Please note that the main duty of this product is to remove the bubbles from the slurry during the wet mixing stage.

For the best mixing uniformity, please select our professional Vacuum mixer TOB-VM-MRX system or vacuum planetary disperse mixer TOB-VPM-HJ system
