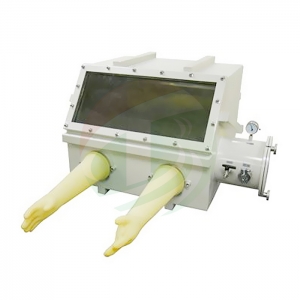

TOB TOB-VGB-3 VGB-3台式不锈钢真空手套箱 (810 Torr/1.1 atm)

Glove Box Chamber

1. Case Material: Made of 11 gauge (3mm thickness) 304 stainless steel sheet with sport frame and plastic painting, which provide heavy duty structure for vacuum

2. Dimensions: 780mm(L) x 700mm(W) x 650mm(H)

3. Max. Positive Pressure: 810 Torr (1.1 atm)

4. Note: Gloves cannot work if pressure is higher than 810 Torr

5. Max. Vacuum Level: 0.5 Torr

6. Note: Stainless Steel case may deform at higher vacuum level

7. Leakage Rate in GloveBox: < 6 Torr/hour

Air-lock Chamber

Dimensions: 240mm(ID) x 260mm(L)

Max. Vacuum Level: 0.05 Torr

Vacuum gauge and valves

1. Two vacuum flanges are included for glove box to achieve vacuum to remove moisture and oxygen without expensive inert gas purging

2. Do not operate under vacuum status. Vacuum process is used for purging the glove box chamber before operation.

Gloves

One pair of Latex Gloves are included for immediate use

Glove hole diameter : 139mm (2 pcs)

Shipping Dimensions: 50" x 40" x 37"

Shipping Weight: 240 kg (520 lbs)
