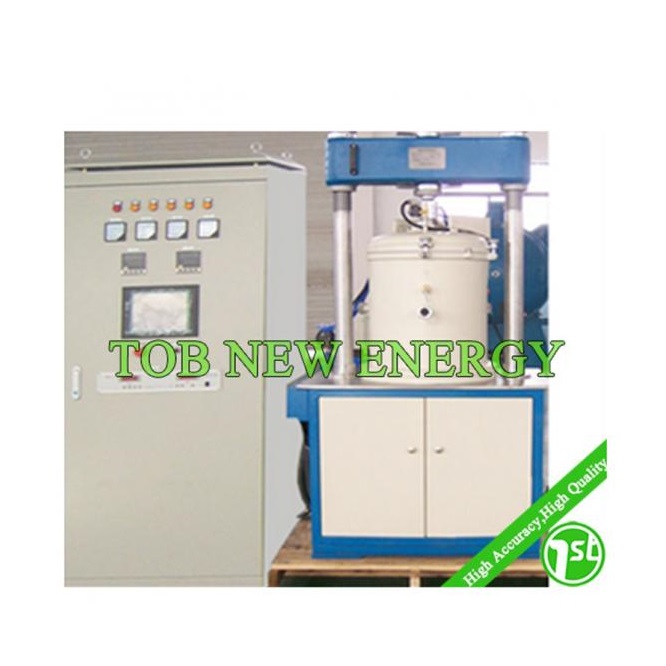

TOB TOB-VHPF-LAB Vacuum Hot Pressing Furnace (2000℃,25KW,5×103Pa)

Limited cold vacuum degree: 5×10﹣3Pa

Heating temperature: 2000℃, with control precision±1℃

Temperature control mode: Tungsten lai thermocouple + infrared instrument

Power: 25KW

Working voltage: 0-30V

Pressure: 10T

Pressure head diameter: 85mm

Head displacement accuracy: 0.02mm

Pressure head stroke: 100mm

Tube dimension: Ф80×120mm

Rate of pressure rise: ≤2Pa/h

Inflation pressure: <0.05Mpa (N2 or Ar)
