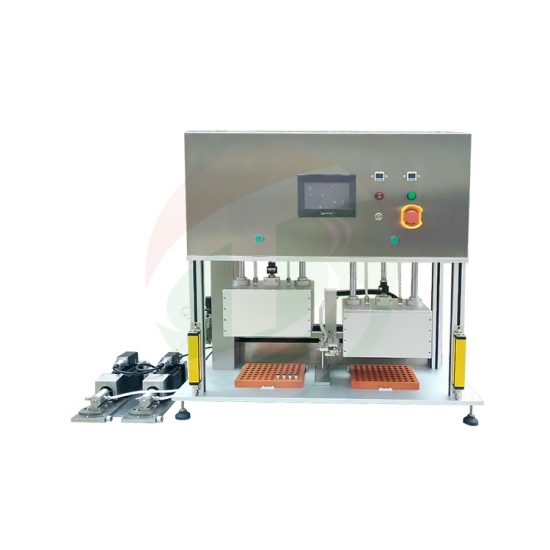

TOB TOB-ZYJ-02 真空灌装机,适用圆柱形电池 (0-7g, 0.3-0.6MPa)

Source voltage: 110V-220V AC, 50/60Hz Single Phase

Power: 1500W

Suitable battery model: 18650 / 26650 / 32650, For all kinds of cylindrical battery

Vacuum filling accuracy: ±0.02g

Vacuum filing time: 1-10times adjustable

Vacuum filling quantity: 0-7g

Vacuum degree: -0.1Mpa

Air supply: 0.3-0.6MPa

Working clamps: 18650 clamps battery tray 6 rows 8 columns

Detail

Datasheet



Advantages

1, Customized die for all kinds of cylindrical cell types is available according to request

2, Adopt PLC and man-machine interface centralized control, easy operation.

3, Filling speed and times can be set

4, All the parameters such as vacuum time, air input time, filling quantity and battery distance can be adjusted freely.

5, Vacuum box for static control independently
