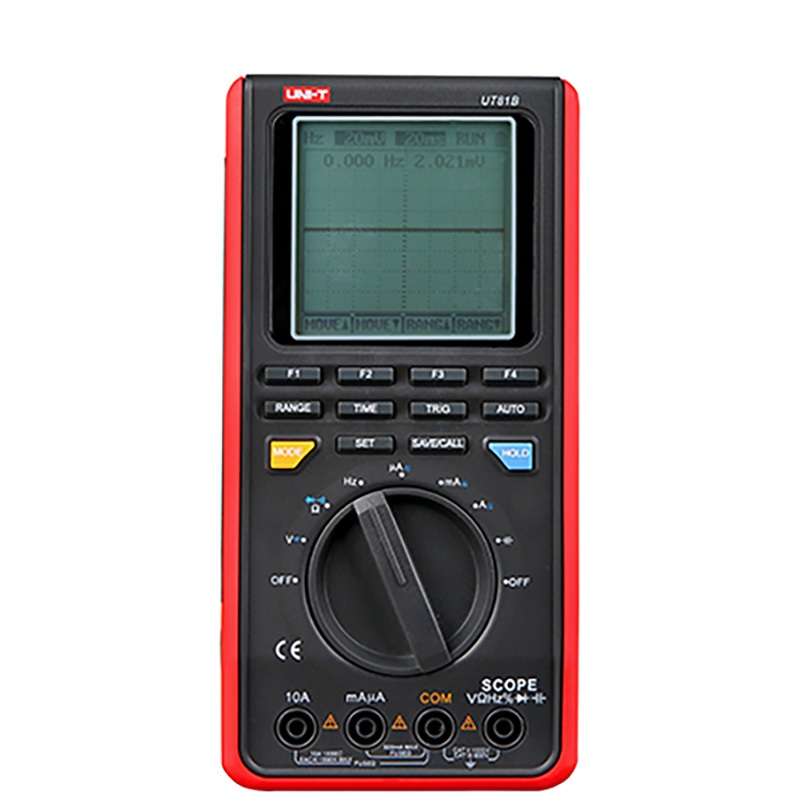

UNI-T UT81B 示波形数字万能表 (8MHz)

DC voltage (V): 1000V ±(0.8%+8)

AC voltage (V): 750V ±(1%+15)

DC current (A): 10A ±(1%+8)

AC current (A): 10A ±(1.5%+8)

Resistance (Ω): 40MΩ ±(1%+5)

Capacitance (F): 100μF ±(3%+8)

Frequency (Hz): 10Hz~10MHz ±(0.1%+3)

Bandwidth: 8MHz

Sampling rate: 40MS/s

Vertical accuracy: ±(5%+1)

Vertical sensitivity: 20mV/div~500V/div (1-2-5)

Time-base accuracy: ±(0.01%+1)

Time-base range: 100ns/div -5s/div (1-2-5)

Display count: 4000

Auto range: Yes

Duty cycle: 0.1~99.9%

Diode: Yes

Auto power off: Yes

Continuity buzzer: Yes

Display: 160 x 160, monochrome

Trigger types: Auto run/Normal/Single shot

Memory 10 screens and setups: Yes

Contrast and brightness setup: Yes

Low battery indication: Yes

USB interface: Yes

LCD backlight: Yes

Input impedance for DCV: Around 10MΩ

Power: 1.5V battery (R6) x 4

Display: 60mm x 60mm

Product color: Red and grey

Product net weight: 498g

Product size: 200mm x 100mm x 48mm

Standard accessories: Batteries, test lead, alligator clip, USB interface cable, PC software CD
