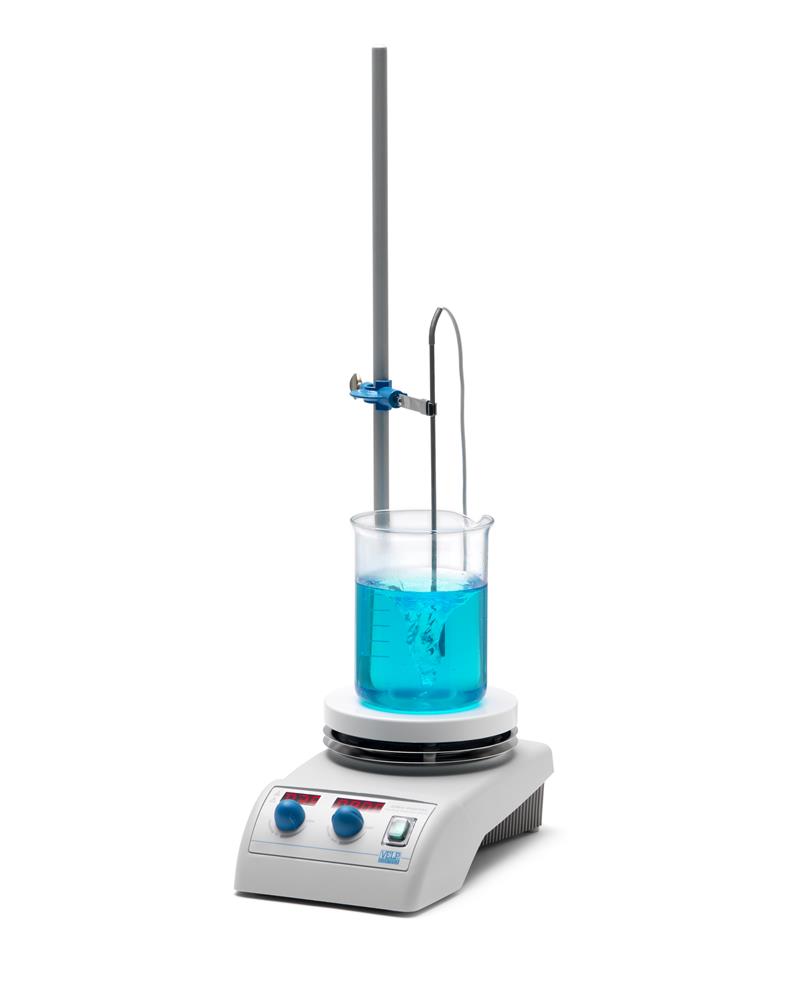

VELP AREX Digital PRO CerAlTop™ 加热磁力搅拌器 (+ VTF, 230/50-60Hz)

Construction material: epoxy painted aluminium structure

Heating plate: aluminum alloy coated with ceramic coating

Heating plate diameter: 135 mm

Digital display: one for speed, one for temperature

Pt100 connection: provided

Vertex connection: provided

Protection rating CEI EN 60529: IP 42

Power: 630 W

Weight: 2.6 Kg (5.7 lb)

Dimensions (WxHxD): 165x115x280 mm (6.5x4.5x11 in)

Electronic speed regulation: up to 1500 rpm

Counter-reaction: constant speed

Electronic temperature regulation: from room temp. to 370°C

Maximum safety temperature digitally settable: temperature limit can be set between 50 and 370 °C

Overtemperature safety circuit: "Hot Plate Warning" whenever the top plate temperature is over 50 °C

Sample thermoregulation: ± 0.5 °C by using the Vertex thermoregulator (AREX Digital PRO); ± 1.0 °C by using Pt100

Stirring volume (H2O): up to 20 liters

Stirring system: high-power driving magnet type ''PCM'' operated by a mono-phase motor for continuous operation

Power Supply: 230 V / 50-60 Hz

Included in the system:

F20500410 AREX DIGITAL PRO Heat. Mag. Stirrer 230V/60Hz

A00001069 Support Rod

A00000280 Clamp for the Pt100

A00000268 Temperature Probe AISI 316 Ti

Details

Datasheet
