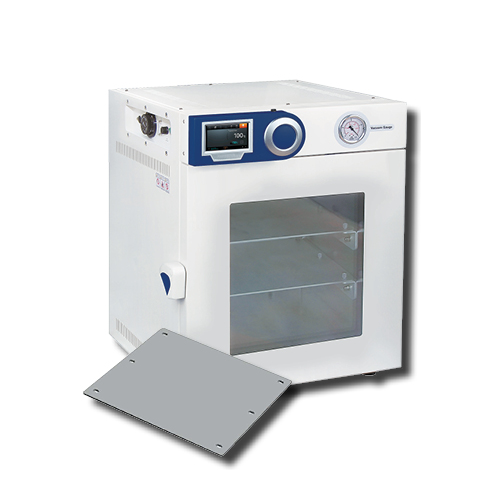

WITEG SWOV-20 真空烘干炉 (10 - 750 mmHg; 18.6升)

Capacity: 18.6 l

Vacuum range, level & rate: 10 - 750 mmHg, 0.63 mbar, 0.39 mbar/h

Temperature range, fluctuation & sensor: Room temperature +5°C - 200°C; fluctuation: ±0.5°C at 100°C & 150°C; PT100 sensor

Temperature variation: ±2.0°C at 100°C, ±3.0°C at 150°C

Heating power: 2 x 170 W, 2 x 130 W

Heat-up time: 60 min. to 100°C, 90 min. to 150°C

Timer & alarm: 99hr 59 min (delay & continous run) and timer end

Resolution: Display 1.0°C, control 1.0°C

Height between shelves: 87 mm

Vacuum inlet valve size: outer Ø10 mm

Internal dimensions (W x D x H): 265 x 290 x 265 mm

External dimensions (W x D x H), net weight: 480 x 475 x 552 mm, 48 kg

Packing size & gross weight: 585 x 580 x 795 mm, 59 kg

Power supply: 1 Phase AC 230V, 50/60 Hz

Power consumption: 600 W


Details

Datasheet
