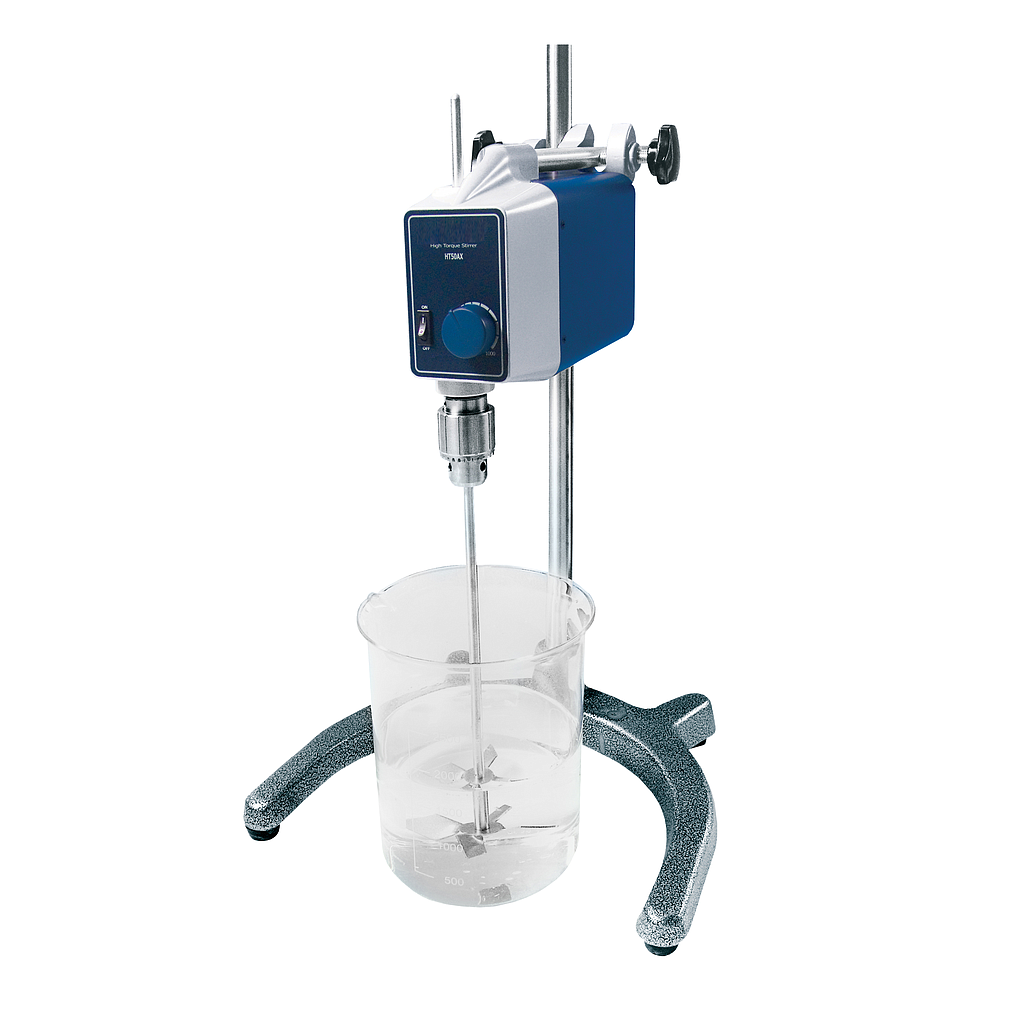

WITEG HT-120AX 设置高架搅拌器 (1000 rpm; 150.000 mPas)

Design: high-torque

Controller-type: analog, intergrated, phase controller

Stirring capacity (H20): max. 60 l

Max. viscosity (mPas): 150.000 mPas

Max. torque (N cm) at chuck: 500 N cm

Max. impeller shaft: Ø10 mm

Speed range: up to 1000 rpm

Controller: analog phase controller with control knob

Permissible temperature & RH %: ambient temperature 0~40°C, 80% RH

Safety device: overheat protection

Dimension & weight: 90x210xh130 mm, 4 kg

Packaging size: 320x300xh180 mm, 8 kg

Material: ABS & Aluminium

Power supply: 1 Phase AC 230V, 50/60 Hz
