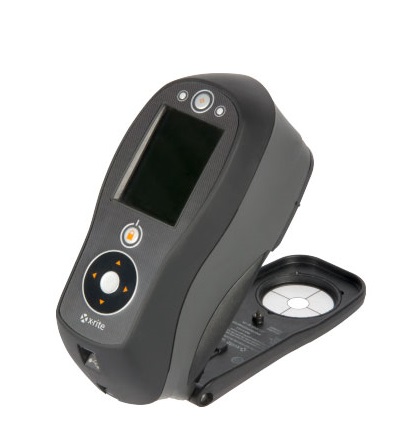

Xrite Ci62-XR 便携式分光光度计 (400nm-700nm, 0.01%, 0.20)

Battery: Li-ion

Calibration: White and Zero

Color Differences: [√/X], Δecmc, Δlab,  ΔE00, Δreflectance,  ΔE94, ΔXYZ, ΔL*a*b*, ΔYxy, , ΔL*C*h°, ΔL*u*v*, Verbal Difference

Color Spaces: Lab, L*a*b*, Reflectance,  L*C*h°, Munsell Notation, XYZ, Yxy, L*u*v*

Communication Interface: USB 2.0, Bluetooth*

Dimensions (length, width, height): 21.3 cm 9.1 cm 10.9 cm

Humidity: 5% to 85%, non-condensing

Illuminants: A, C, D50, D65, F2, F7, F11 & F12

Illumination Spot Size: 20mm or 14mm or 6.5mm

Instrument Display: Backlit Color Graphic LCD

Inter-Instrument Agreement: 0.20 ΔE*ab avg.

Lamp Life: Approx. 500,000 measurements

Languages Supported: English, German, French, Spanish, Italian, Portuguese, Chinese Simplified, Chinese Traditional, Korean, and Japanese

Light Source: Gas-filled tungsten lamp

Measurement Cycle Time: ≈ 2 seconds

Measurement Geometry: d/8°

Measurement Spot: 14mm or 8mm or 4mm

Measurement Time: ≈ 2 seconds

NetProfiler Support: Embedded

Observers: 2° & 10°

Operating Temperature Range: 50° to 104°F (10° to 40°C)

Package Dimensions (length, width, height):  51cm, 20cm, 41cm

PantoneLIVE Support: Via software

Pass / Fail: Yes

Photometric Range: 0 to 200%

Photometric Resolution: 0.01%

Reflectance Aperture(s): 1

Shipped Weight: 7kg

Short Term Repeatability - White: .05 ΔE*ab on white ceramic

Software Development Kit: XDS4

Spectral Analyzer: Blue-enhanced silicon photodiodes

Spectral Interval: 10nm

Spectral Range: 400nm-700nm

Standard Indices: [√/X], YI1925, WI Taube, ΔWI73, Reflectance, WI98, MI, Δreflectance,  ΔWI Berger, WI73, MI6172, ΔYI98, ΔWI Hunter, Gray Scale, WI Berger, Gloss, ΔYI73, ΔWI Stensby, YI98, WI Hunter, ΔYI1925, ΔWI Taube, YI73, WI Stensby, ΔWI98, Averging, 555 Shade Sort

Storage Temperature Range: -4° to 122°F (-20° to 50°C)

Voltage: 100-240VAC 50/60Hz, 12VDC at 2.5A

Weight: 1.06 kg
