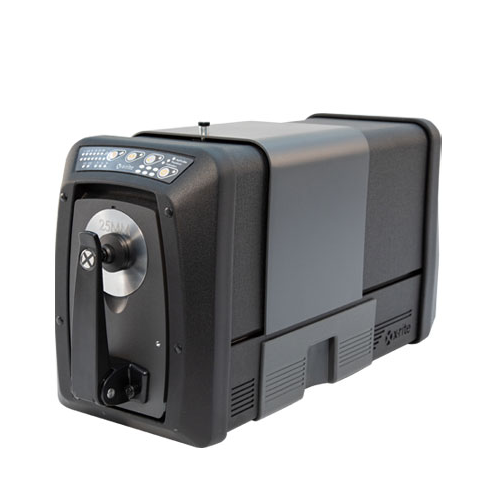

Xrite CIA-PXXXXX 台式分光光度计 (360-780 nm, 0.001%, 0.06)

Calibration: White, Zero, UV

Communication Interface: USB 2.0

Dimensions (LxWxH): 56cm, 22cm, 31cm

Embedded NetProfiler Support: Yes

Humidity: 5% to 85%, non-condensing

Illumination Spot Size: 25mm, 17mm, 10mm, 6mm, 3.5mm* (optional)

Inter-Instrument Agreement: 0.06 ΔE*ab avg.

Internal Temperature & Humidity Sensor: Yes

Lamp Life: ≥1,000,000 measurements

Lamp Timer: Yes

Laser Transmission Targeting: Yes

Light Source: Pulsed Xenon, D65 calibrated

Measurement Cycle Time: ≈ 2.5 seconds

Measurement Geometry: d/8°

Measurement Spot: 19mm, 10mm, 5mm, 2.5mm

Measurement Time: ≈ 2.5 seconds

Operating Temperature Range: 5°C to 40°C

Package Dimensions (LxWxH): 71cm, 38cm, 53cm

Photometric Range: 0 to 200%

Photometric Resolution: 0.001%

Reflectance Aperture(s): 4 std/1 optional

Sample  preview: Door and Video

Service Indicator: Status panel

Spectral Analyzer: 2D CCD array holographic grating

Spectral Interval: 10 nm (default); 5nm; 20nm

Spectral Range: 360-780 nm

Storage Temperature Range: -20° to 50°C

Transmission Aperture(s): 4

Voltage: 100 to 240 VAC / 50 to 60Hz

Shipped Weight: 25kg

Weight: 20.5kg

Included:

- Instrument with white calibration standard, black trap, green standard, UV calibration standard, aperture plates, manual (CD), AC adapter, and USB cable.
