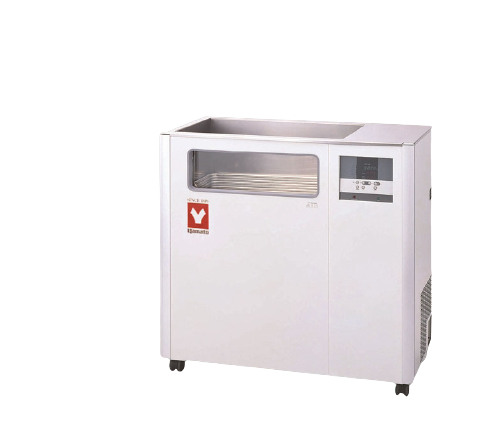

Yamato BL810 水浴 (80L )

Method: Pump circulating cooling

Operating temperature range: -15~+70°C

Temperature control accuracy: ±0.1°C

Temperature distribution accuracy: ±0.3°C

Temperature indicating unit: 0.1°C

Cooling capacity: Approx. 880W (756Kcal/h), at fluid temp.15°C

Temperature control: PID control

Operation function: Fixed temp., Auto stop, Auto start operations

Temperature sensor: Temp. controller: Pt thermal resistance, Overheat protection: K thermocouple

Temp. setting, display: Digital setting and display

Refrigerator, refrigerant: Air cooling 600W, R404A

Strring method: Jet stirring method by magnetic pump

Heater: 2KW

Operating environmental temp. Range: 5~30°C

Safety device: Overcurrent ELB, Self-diagnosis, Refrigerator overload protector, Refrigerator delay timer of protection, Refrigerator pressure detection, Float switch preventing pump idling, Auto overheat protection, Overheat protector, Key lock, etc..

Other function: Water valve, condenser filter screen, Deviation correction, External communication (RS485), Refrigerator pressure indicator, Power outage compensation, Temp. output terminal

Shelf plate steps/pitch: 2 steps, 30mm adjustable pitch

Accessories: Drain hose, Consensation water drainage hose, Shelf plate

Internal dimensions（W×D×H mm）: 600×400×350mm

External dimensions（W×D×H mm）: 880×490×855mm

Remarks(dimensions): 80L (Approx. 72 L of liquid)

Power Source: AC220V 15A

Single-phase with step down transformer

Weight: 105kg
