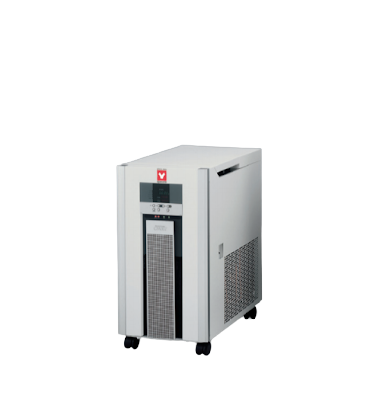

Yamato CFA302 冷却水循环机 (13L, 850W)

Method: External closed circulation

Operating temperature range: -10 to +60°C

Temperature control accuracy: ±0.1°C JTM K05 (at 20°C)

Temperature setting, display: Digital setting and display

Temperature indicating unit: 0.1°C

Cooling capacity: Approx. 370W (318Kcal/h), at fluid temp.10°C

Operating environmental temp. range: 5 to 35°C

Temperature control: PID control

Temperature sensor: Temp. controller: Pt thermal resistance, overheat protection: K thermocouple

Refrigerator, refrigerant: Air cooling 300W, R404A

Circulating pump: Magnetic drive pump 45W

Heater: Stainless steel heater 850W

Cooling coil: Nickel-clad copper

External circulation nozzle: Rc3/8 (CFA301 standard configuration pagoda connector)

Safety device: Overcurrent ELB, Self-diagnosis, Refrigerator overload protector, Refrigerator delay timer of protection, Refrigerator pressure detection, Float switch preventing pump idling,

Accessories: Drain pipe, Overflow pipe

External dimensions(W×D×H mm): 380×565×725mm

Remarks(dimensions): Bath capacity 13L, W245×D315×H180mm

Power Source: AC115V/AC220V

Single-phase with step down transformer

Weight: 60kg
