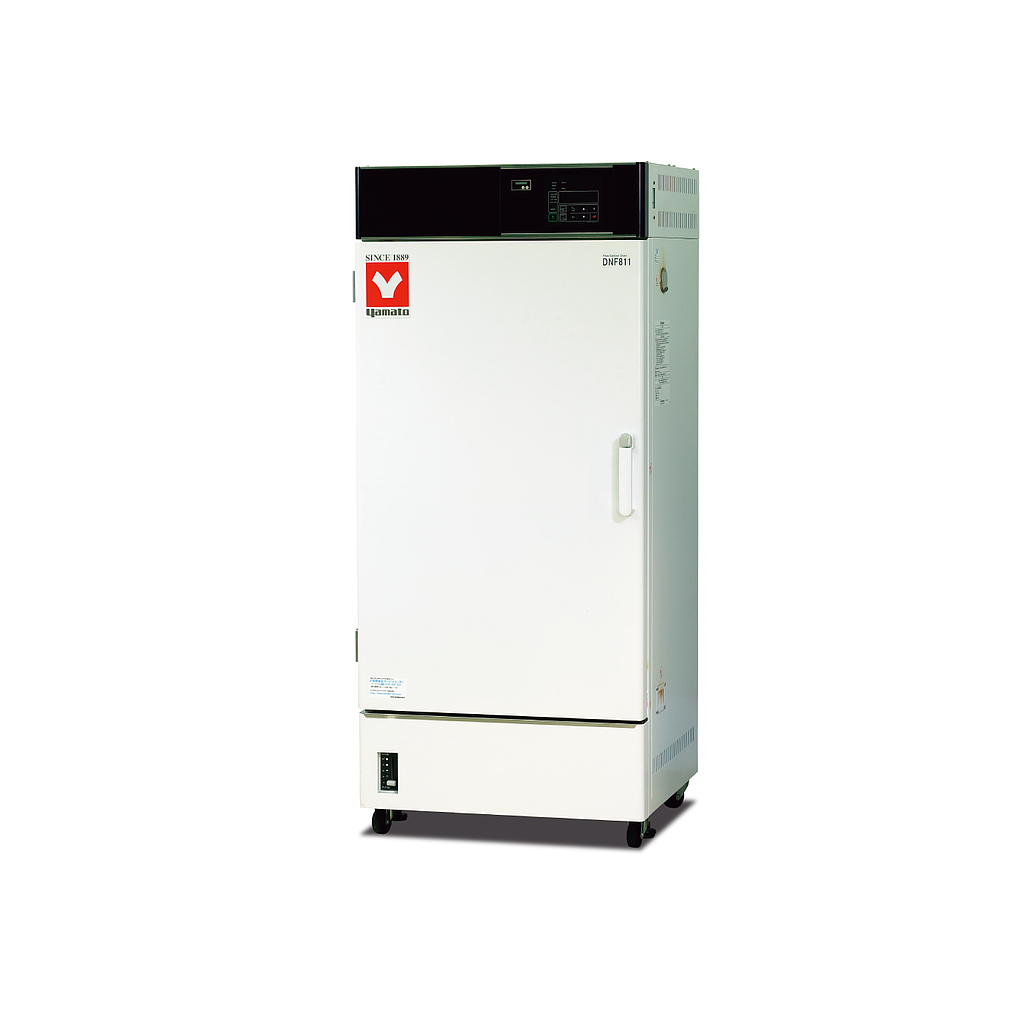

Yamato DNF811 强制对流烘干箱 (300L, 1.35 kW×2)

Circulation method: Forced convection, with manual exhaust damper

Forced convection (Wind velocity setting:1-10)

- Operating temperature range: RT +15 to 260°C

- Temp. control accuracy: ±0.3°C (at 260°C)

- Temp. distribution accuracy: ±2.5°C (at 260°C)

- Max. temp. reaching time: Approx. 60 min

Interior/Exterior material: Stainless steel /Electro-galvanized steel sheet with epoxy and melamine resin baking finish

Heat insulating material: Glass wool

Heater: 1.35 kW×2

Cable port: 33mm I.D. (Right)×1pc.

Air in-take port: 33mm I.D. (Right)×1pc.

Exhaust port: 50mm I.D. (Back)×1pc

Internal dimensions (W×D×H): 600×500×1,000 mm

External dimensions (W×D×H): 730×695×1,685 mm

Internal capacity: 300L

Power supply: Single phase: AC220V

Weight: 135 kg

Accessories:

- Shelf plate: Stainless steel, 4 pcs

- Shelf support: 8 pcs.
