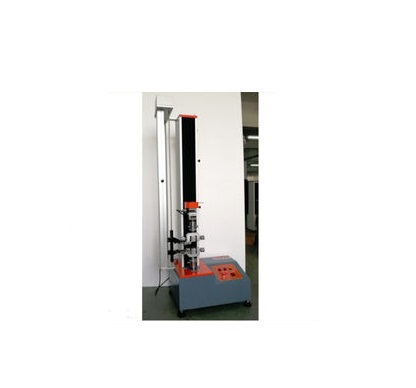

YuYang YY1311 单臂计算机伺服拉伸强度试验机 (5000N)

Capacity: 500KG (5000N)

Effective load range: 0.4％～100％

Load accuracy: ±0.5％ of value

Display: Computer Test Software

Units: Kg,lb,N

Data sampling frequency: 200times/sec

Load solution: 1/±250000 of max load

Load sensor: Pull and press sensor(max load)

Effective test width: 150mm

Effective stroke: 500mm

Test speed: 50-500mm/min

Displacement accuracy: ±0.5％

Returning function: Manual or automatic two option, after test the up fixture will return to the initial position

Safety device: Electronic process for limit procession

Overload protection: If 10％ over than max load,machine will automatic stop for protection

Result print: Outside printer that connect to computer

Grip: Tensile fixture 1 set

Machine Size: 420×350×1520mm

Machine weight: Approx. 50 Kg

Power: 220V±10% 0.2KW/0.4KW
