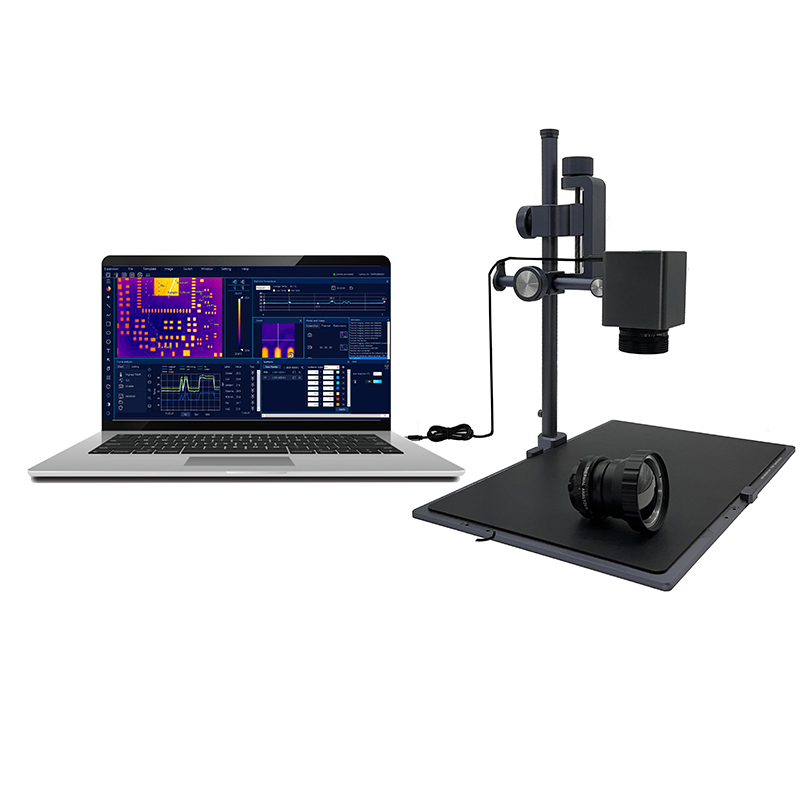

Camera ảnh nhiệt DYT CA-20 (260*200,-10℃~450℃)

Overview

CA Pro Series Integrated Thermal Analyzer is able to detect and measure the data of an object’s temperature changing with time based on the principle of infrared detection and imaging, and store and analyze the reliability of the measurement results without time limit.

It is mainly applied in the location, detection and maintenance of PCBA leakage, short circuit and open circuit; the evaluation and comparison of mobile phones or other smart devices; auxiliary analysis of electronic equipment performance; temperature control of electronic atomizer; temperature conduction analysis of heat conducting and radiating materials; uniformity analysis of materials; heating experiment, thermal simulation and verification of heating rationality in circuit design; and thermal design data analysis, etc.

Application

Detection of short circuit and electric leakage of the PCBA

Analysis of the heat dissipation rationality of the PCBA

Evaluation of the thermal conductivity and heat dissipation of materials

Analysis of temperature control of the atomizer heating of electronic cigarettes

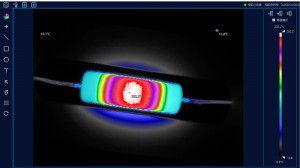

Analysis of thermal effect of components

Analysis of heating rate of heating materials

Other analytical applications: Analysis of LED guide plates, quality analysis of optical fiber welding, loading analysis of components…

Analysis mode

Circuit board analysis mode

Analysis mode of E-cigarette atomizer

Multi-dimensional analysis mode

Analysis mode of material thermal capacity

Defect analysis mode

Application Scenario

Detection and analysis of heat conduction material

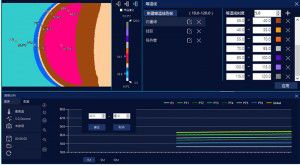

When the heat conduction material conducts heat, different color blocks can be set to view the distribution of heat conduction.

Analysis of the thermal design of the circuit board

When the circuit board chip heats up, users can check the components affected by the heat to adjust the layout.

Temperature control analysis of E-cigarette

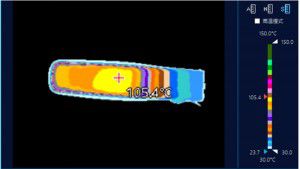

Quickly tracking the heating rate and temperature of the atomize

Thermal quality analysis of products and components

The aging degree of the tested components can be analyzed through the simultaneous comparison of the standard samples and the tested samples.

Material heat dissipation analysis

The heat dissipation of different heat dissipation materials can be analyzed through the temperature color block.

Circuit board pulse heating analysis

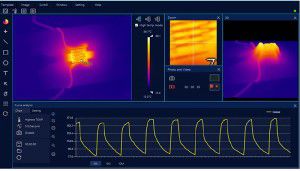

The thermal analyzer can quickly capture the occasional pulse heat emitted by some components on the circuit board due to failure.

Heating capacity analysis of heating materials at different voltages and currents

The heating rate, heating efficiency and heating temperature of materials such as heating wire and heating sheet at different voltages and currents can be quantitatively analyzed.

Analysis of the corresponding relationship between voltage, current and temperature

Location detection of short circuit and leakage

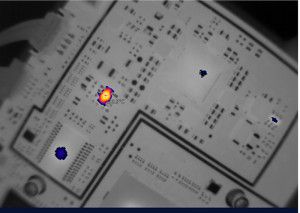

When repairing the circuit board, the leakage position can be located through the first, second and third high temperature points.

Various accessories available

Fixed plate of atomizer test

Fixed atomizer resistance wire E-liquid injection test. Low resistance connector.

Automatic heating test bench for atomized electronic cigarettes

Automatic inhalation stimulation. Supporting the setting of pumping experiment times.

Experiment box

Simulating the temperature conditions of the equipment in a closed environment. Infrared thermal observation window with the diameter of 4cm. Built-in temperature sensor.

Power analyzer

Load voltage and current power analyzer, which can be connected to the analyzers from the specified manufacturers  as required by customers.

Standard normal temperature reference

50℃ temperature reference for calibrating the accuracy of equipment temperature at normal temperature

CA Pro series thermal analyzers of Dianyang Technology

CA Pro series thermal analyzers of Dianyang Technology are characterized by simple structure and

flexibility, and can detect, store and analyze such data as object temperature changes with time, so as to

reduce test times and save experimental time for engineers, designers, university experimenters and other

consumers.

Characteristics of CA Pro series thermal analyzers

 Detection temperature:

 Multiple temperature detection and mapping tools: points, lines, rectangles, polygons, and

equal-scale segmentation diagrams (nine-square diagrams);

 16 color boards, which are suitable for a variety of different applications;

 Detailed inspection in the rectangular frame, which is suitable for observing the local

temperature change of the thermal field;

 Multiple temperature width detection methods: dynamic temperature width, bright high

temperature area and isotherm;

 Multiple temperature data displays: high temperature, low temperature and average

temperature;

 Display of multiple temperature change curves: global temperature, temperature

measurement at 40 points and 20 areas (line, rectangle and polygon);
