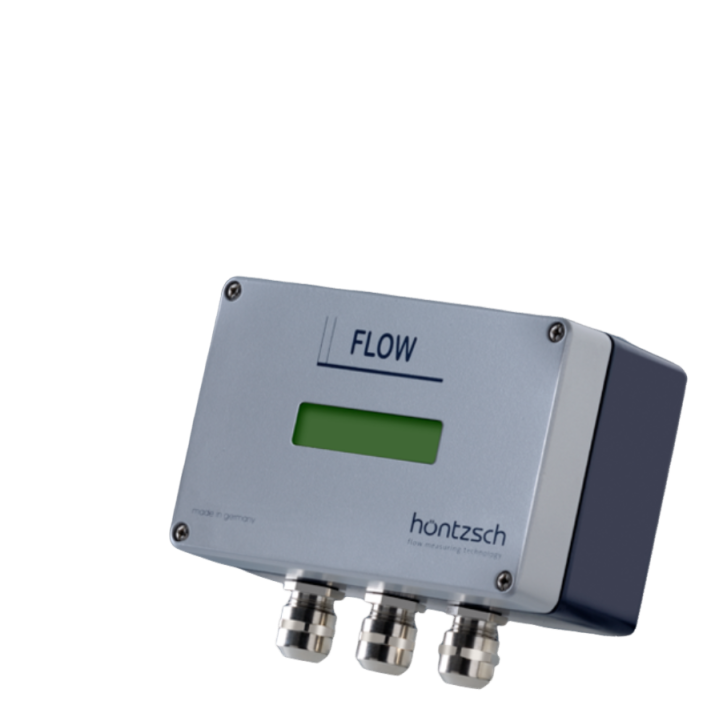

For use with vortex flow sensors VA40 and VA Di for measuring flow rate and flow velocity
Transducer type: UVA
Outputs: 4 ... 20 mA
Power supply: 24 V DC (20 ... 27 V DC)z, output < 5W
Housing
aluminium housing AS102: dimensions L/B/H: 150/100/80 mm bush for shielded cables with outside diameter 5 ... 10 mm, contacting of Cu overall shielding by the metallic screwed cable glands
Connection: 'Push In' terminals; no tools necessary to connect conductor; conductors can be separated by applying pressure with a pen or screwdriver; suitable for conductors with cross sections from 0.14 ... 1.5 mm²
Protection: IP20, IEC 529 and EN 60 529
EMC: EN 61 000-6-2 / IEC77
Working temperature range:
without display : -25 ... +60 °C
with display : -25 ... +60 °C
For more details, see datasheet.
