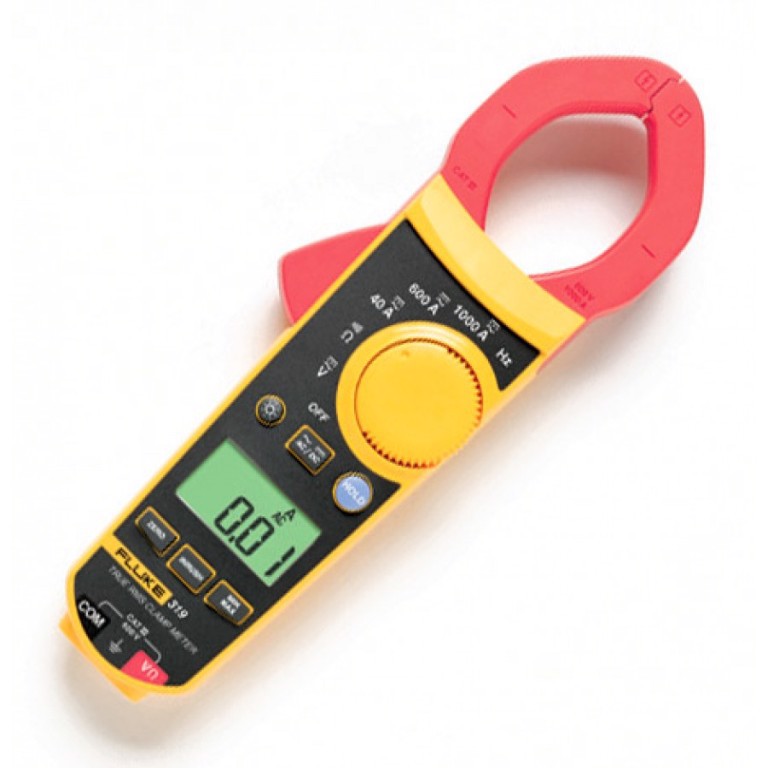

Ampe kìm AC/DC FLUKE 319 (1000 A)

Hãng sản xuất: FLUKE
Model: 319
Xuất xứ: China
Liên hệ
Có sẵn: 3 Cái
- Yêu cầu báo giá
Tham khảo dịch vụ Hiệu chuẩn-Kiểm định và Sửa chữa
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222) 730.39.68
TP. Hải Phòng: (0225) 730.03.89
TP. HCM: (028) 38.119.636
Đồng Nai: 0345.689.536

Thông số kỹ thuật
Thông tin hãng sản xuất

ACA: 40.00 A /1.6%, 600.0 A, 1000 A /1.5%

DCA: 40.00 A /1.6%, 600.0 A, 1000 A /1.5%

ACV: 0.1V ~ 600.0 V /1.5%

DCV: 0.1V ~ 600.0 V /1%

R: 400.0 Ω, 4000 Ω /%

Kiểm tra liên tục: ≤ 30 Ω

F: 5.0 - 500.0 Hz /0.5%

Kích thước vòng kìm: 1.45 in (37 mm)

Kích thước máy: 162.4 mm x 58.25 mm x 30.5 mm

Trọng lượng: 384 g

Phụ kiện: dây đo, túi mềm, 3 pin AAA, HDSD

Chi tiết

General Specifications

Digital Display

6000 count resolution

Low Battery Indication

Displays a signal when the batteries are below their required voltage

Power Source

Three AAA IEC LR03 batteries

Clamp Opening Size

1.45 in (37 mm)

Jaw Diameter

1.45 in (37 mm)

Dimensions (L x W x H)

	6.39 in x 2.29 in x 1.20 in
	(162.4 mm x 58.25 mm x 30.5 mm)

Weight

approximately 13.5 oz (384 g) (batteries included)

Auto Range

Available in Ohms

Safety

	CE
	EN/IEC 61010-1 and IEC 61010-2-032
	Measurement Category: 600V CAT III

317 Electrical Specifications

Current AC

Range	40.00 A, 600.0 A
Resolution	0.01 A, 0.1 A
Accuracy	1.6% ± 6 digit (50-60 Hz) {40 A}
	2.5% ± 8 digit (60-500 Hz) {40 A}
	1.5% ± 5 digit (50-60 Hz) {600 A}
	2.5% ± 5 digit (60-500 Hz) {600 A}
Crest Factor add 2% into spec for CF > 2	3.0 Max @ 500 A, 2.5 Max @ 600 A
AC response	rms

Current DC

Range	40.00 A, 600.0 A
Resolution	0.01 A, 0.1 A
Accuracy	1.6% ± 6 digit (40 A)
	1.5% ± 5 digit (600 A)

Voltage AC

Range	600.0 V
Resolution	0.1 V
Accuracy	1.5% ± 5 digit (20-500Hz)
AC response	rms

Voltage DC

Range	600.0 V
Resolution	0.1 V
Accuracy	1% ± 4 digit

Resistance

Range	400.0 Ω, 4000 Ω
Resolution	0.1 Ω, 1 Ω
Accuracy	1% ± 5 digit

Continuity

≤ 30 Ω

Inrush

Integration time

Frequency

Range	N/A
Accuracy	N/A
Trigger Level	N/A

319 Electrical Specifications

Current AC

Range	40.00 A, 600.0 A, 1000 A
Resolution	0.01 A, 0.1 A, 1 A
Accuracy	1.6% ± 6 digit (50-60 Hz) {40 A}
	2.5% ± 8 digit (60-500 Hz) {40 A}
	1.5% ± 5 digit (50-60 Hz) {600/1000 A}
	2.5% ± 5 digit (60-500 Hz) {600/1000 A}
Crest Factor add 2% into spec for CF > 2	3.0 Max @ 500 A, 2.5 Max @ 600 A, 1.4 Max @ 1000 A
AC response	rms

Current DC

Range	40.00 A, 600.0 A, 1000 A
Resolution	0.01 A, 0.1 A, 1 A
Accuracy	1.6% ± 6 digit (40 A)
	1.5% ± 5 digit (600/1000 A)

Voltage AC

Range	600.0 V
Resolution	0.1 V
Accuracy	1.5% ± 5 digit (20-500Hz)
AC response	rms

Voltage DC

Range	600.0 V
Resolution	0.1 V
Accuracy	1% ± 4 digit

Resistance

Range	400.0 Ω
	4000 Ω
Resolution	0.1 Ω
	1 Ω
Accuracy	1% ± 5 digit

Continuity

≤ 30 Ω

Inrush

Integration time

100 ms

Frequency

Range	5.0 - 500.0 Hz
Accuracy	0.5% ± 5 digit
Trigger Level	10 - 100 Hz ≥ 5 A, 5 - 10 Hz, 100 - 500 Hz ≥ 10 A

The accuracy specifications aply at 73 °F ± 41 °F (23 °C ± 5 °C)

Below 64 °F and above 82 °F (18 °C and above 28 °C) accuracy degrades at (0.1) times specification per °C.

True rms for ac V and ac A accuracy is specified from 5% to 100% of range.

Environmental Specifications

Operating Temperature

14°F to 122°F (-10 °C to 50 °C)

Storage Temperature

-40 °F to 140 °F (-40 °C to 60 °C)

Operating Humidity

	Non condensing (< 50 °F) (< 10 °C)
	90 % RH (50 °F to 86 °F) (10 °C to 30 °C)
	75 % RH (86 °F to 104 °F) (30 °C to 40 °C)
	45 % RH (104 °F to 122 °F) (40 °C to 50 °C)
	(Without Condensation)
