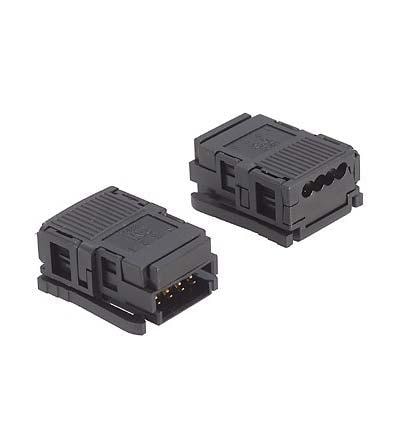

3M Electronic Solutions Division 38104-E018-E00FL コネクターアセンブリ 4P WRMNT CC LINK FOR DISCRETE WIRE

Pitch: 2.54 mm (0.1 in)

Wire Gauge: 18 AWG

Unit Weight: 7.601 g

Current Rating: 5 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 1 Row

Housing Material: Polybutylene Terephthalate (PBT)

Termination Style: IDC

Flammability Rating: UL 94 V-0

Number of Positions: 4 Position

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
