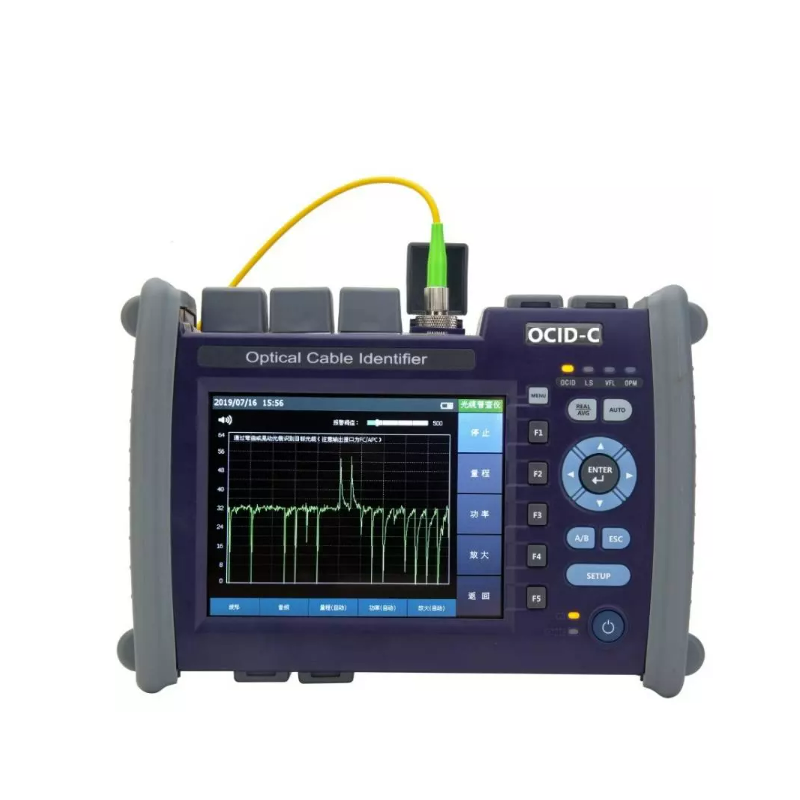

3S Telecom CID-C 光ケーブル識別子 (1550nm)

Optical Cable Identifier (OCID) Module

Measurement Method: Single Fiber (No loop)

Wavelength: 1550nm

Test Distance: 60km or 120km Optional

Cable Loss: ≤14dB @60km, ≤24dB @120km

Waveform Display: Support (in Real Time)

Audio Sound: Support (in Real Time)

Initial Blind Zone: No Blind Zone

SNR: > 10dB

Fiber Type: 9/125 Single Mode Fiber

Connector: SC/APC and FC/UPC

OTDR Module

Pulse Width: 3ns,5ns,10ns,50ns,80ns,160ns,320ns,500ns,800ns,1μs,3μs,5μs,8μs,10μs, 20μs

Distance Range500m,1km, 2km, 4km, 8km, 16km, 32km, 64km, 128km, 25: 6km

Sampling Resolution: 0.05 to 16m

Sampling Point: 16k to 128k points

Linearity: ≤0.2dB/dB

Distance Accuracy: ±(1m+measuring distance×3×10^-5+sampling resolution) ( excluding IOR uncertainty)

Loss Threshold: 0.01dB

Loss Resolution: 0.001dB

Distance Resolution: 0.01m

IOR Setting: 1.0~2.0, 0.0001 step

Units: km

OLS Module

Wavelength: 1310/1550nm

Output Power: > -5dBm

Output Mode: CW/270/330/1k/2k Hz

OPM Module

Wavelength: 850/980/1300/1310/1490/1550/1625/1650nm

Test Range: -50~+ 26dBm (default)

Accuracy: ±0.35dB±1nW

Modulation: 270/330/1k/2k Hz, Pi≥-40dBm

VFL Module

Wavelength: 650nm

Output Power: 1mw, CLASSIII A

Test Range: 5km

Launching Mode: CW/1Hz/2Hz

Adapter Type: 2.5mm Universal Adapter for FC SC ST Connectors

General Information

Size/Weight: 227x160x70mm/ 1.5kg

Display: 5.6 Inch Colorful LCD Touch Screen

Interface: USB, TF Card Port, Rj45 Port, OTDR port, VFL port, Power Meter Port, Charging Port

Power Supply: Input: 100V(ac) to 240V(ac), 50~60Hz; Output: 12~19V(DC)1.5A; 5000mAh/7.4V Lithium battery

Working Time: >8 hours; Charging < 5 hours

Power Saving: Intelligent power management; Auto power off: Never/1min/5min/10min/30min/60min

Data Storage: TF Card (8G Max)

Language: English in Default

Environmental Conditions: Operating temperature and humidity: -10°C~+50°C, ≤95% (non-condensation);

Storage temperature and humidity: -40°C~+70°C, ≤95% (non-condensation)
