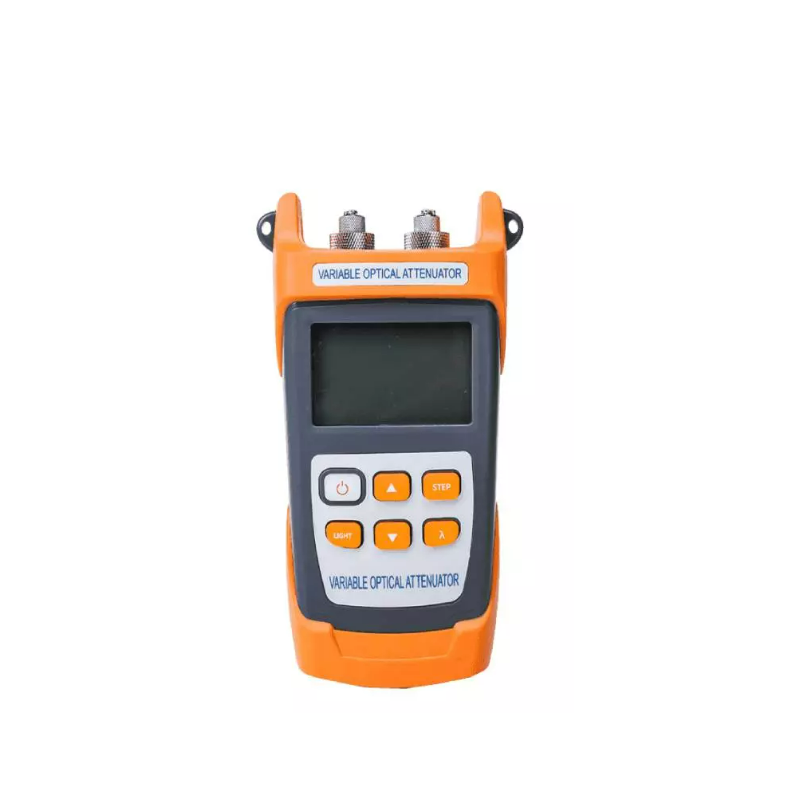

3S Telecom OVA-60B デジタル可変光アッテネータ (0~60dB)

Attenuation Range: 0~60dB

Resolution: 0.1B

Fiber Type: SMF 9/125um;

Attenuation Wavelength Range: 1260~1650um

Calibrated Wavelength: 1310/1490/1550/1625/1650nm

Repeatability:

     ±0.1dB (0-30dB)

     ±0.25dB (30-60dB)

Accuracy:

     ±0.25dB (0-30dB)

     ±0.4dB (30-60dB)

Max. Input Power: +18dBm

Power Supply: 3 x AA Alkaline Battery

Automatic Shutdown Time: 10min

Operating Time: 48 hours

Connector: FC/PC and SC/PC interchangeable

Operating Temperature: 0°C to +40°C

Storage Temperature: -10°C to +60℃

Relative Humidity: 0%~85% (non-condensing)

Dimension: 186mm*100mm*50mm

Net Weight: 180g
