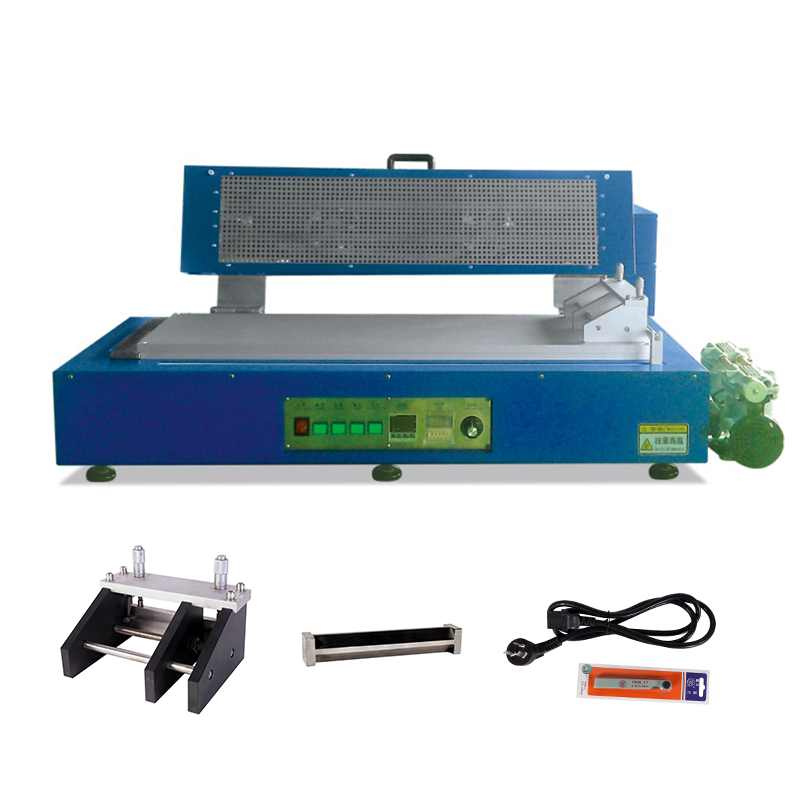

ACEY ACEY-HFC800 Customizable Film Dryer Battery Electrode Vacuum Coating Machine (0～120mm/sec)

Film coating speed: 0～120mm/sec

The stroke can be adjusted by the stroke switch between 0～800mm

Vacuum plate: Aluminum plate with vacuum

Vacuum plate size: L900mm × W200mm × H32mm

Scraper adjustable range: 0～3.5mm

Heating drying system: Room temperature～130℃, digital display temperature controller, accuracy ±1℃

Includes 1 oil-free vacuum pump

Power supply: 220V/50Hz

Power: 1.8KW

Weight: 70KG

Dimensions: L1000mm × W355mm × H325mm

Strong wind circulation drying heating, digital display temperature control, working temperature 130℃.

Digital display timer, drying time can be set as you need.

The coating speed is adjustable within the range of 0～120mm/sec.

Vacuum aluminum plate can quickly place or remove the substrate.

The stroke can be adjusted by the stroke switch between 0～800mm.

Coating thickness adjustable.
