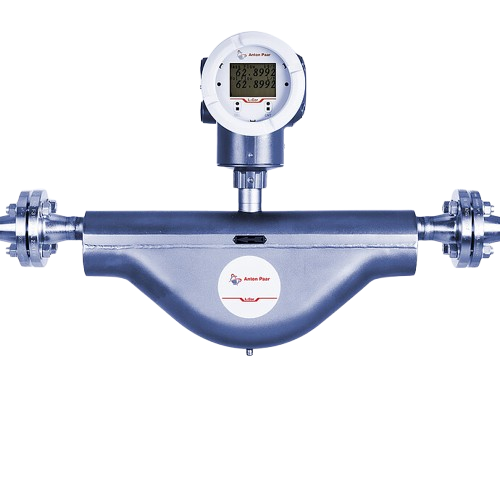

Anton Paar L-Cor 4000 Coriolis Mass Flow Meter (24 kg/h ~ 48,000 kg/h)

Flowrate: 24 kg/h to 48,000 kg/h

Flow accuracy: ± 0.2%*

Flow repeatability: ± 0.1%

Density range: 300 kg/m3 to 2,000 kg/m3

Density accuracy: ± 3 kg/m3

Nominal diameter: ½” to 2”

Ambient temperature: - 40 °C to +55 °C

Process temperature: - 40 °C to +130 °C

Process pressure absolute: According to flange specification

Process connection: ASME B16.5 Class 150, 300, 600

Tri-clamp ISO 2852

Wetted parts: 1.4404 (SUS316L)

Approvals for potentially explosive atmospheres: ATEX, IECEx, CSA (C-US), NEPSI (CCC)

Outputs: 2x analog, 2x pulse (frequency), 1x status output

Inputs: 1x status input

Digital communication: Bell 202, Modbus RTU (RS-485), Profibus PA, Fieldbus

Transmitter version: Integrated, separately mounted, mounted in control cabinet

* ± ZS is applied for flow rates below 7.5% of the maximum measuring range. Accuracy valid at reference conditions. ZS = Zero stability error = (Zero stability)/(Flowrate at the moment) x100%
