Pump: Submersible
Max head: 8.3m H2O
(using volumetric tank): Max flow: 80 litres/min
(using appropriate accessory): Max flow: 100 litres/min
Motor rating: 0.25kW
Sump tank capacity: 250 litres
High flow volumetric tank: 40 litres
Low flow volumetric tank: 6 litres
Height of working surface: 1m above floor level
Overall dimensions:
Length 1.13m
Width 0.73m
Height 1.0m
Packed and crated shipping specifications:
Volume: 1.5m3
Gross weight: 160kg

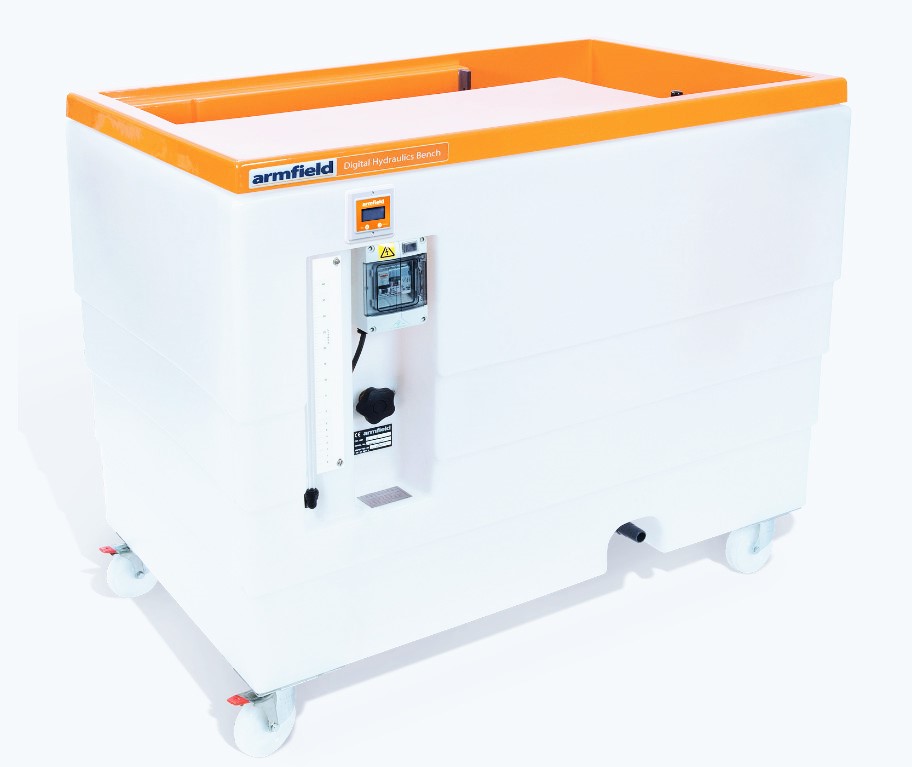

The bench additionally includes a quick-release pipe connector situated in the benchtop enabling rapid exchange of accessories without the need for hand tools, a measuring cylinder for measurement of very small flow rates, stopwatch and a copy of Armfield’s F1-aBASIC educational software.
The F1-10 hydraulics bench can be supplied with either a factory fitted electronic flow meter with digital display or an optional inline digital flow meter that can be added in line to the experiment on test at any time.
