Max flow rate: 1.6L/min typical
Max head: 9.0m
Max pump speed: 1800rpm
Motor power rating: 250W
Pressure sensor: 0~ 15psi
Flow sensor: 0~ 27l/s
Dimension
Height: 600mm
Length: 880mm
Width: 510mm

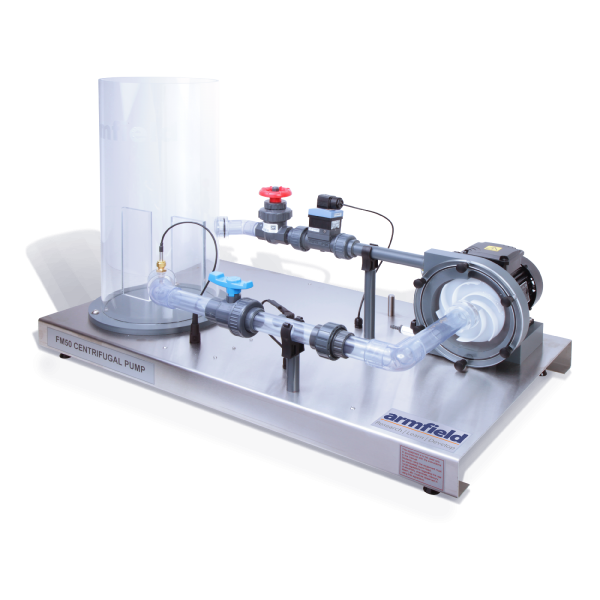

A small-scale centrifugal pump demonstration unit, comprising of a water reservoir, the pump, control valves and interconnecting pipework all mounted on a stainless steel base.
Equipped with electronic measurement sensors for pump head pressure, suction, flow-rate and water temperature.
Transparent pump volute for visibility
Capable of being linked to a PC (not supplied) via the IFD7 interface console (available as an essential accessory).
Supplied with software providing full instructions for setting up, operating, calibrating and performing the teaching exercises
INSTRUCTIONAL CAPABILITIES
Demonstration of a single-stage centrifugal water pump in operation.
Measurement of constant-speed pump performance, including production of characteristic curves:
- pump total head
- motor shaft power
- impeller speed
- pump efficiency
Introduction to pump speed laws.
Investigation of impeller styles.
Comparison of student calculations with computer results.
