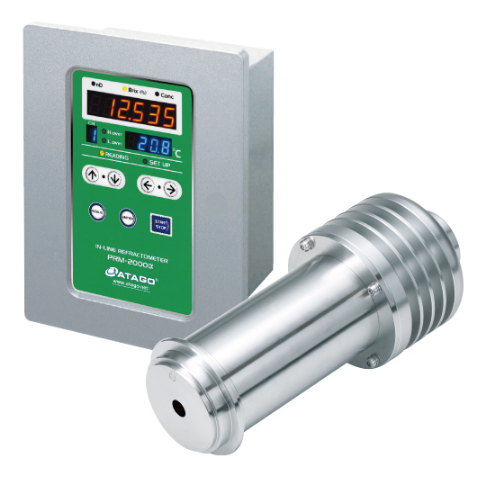

ATAGO PRM-2000α DX インライン屈折計 (Refractive index (nD) : 1.32069 ~ 1.36500, Brix: 0.000 ~ 20.000%)

The DX series has succeeded in reducing the weight while maintaining the performance of the PRM-2000α. The sophisticated and compact silver housing contributes to the SDGs by saving resources.PRM-2000α DX is a model that can measure Brix in the range of 0 to 20% with a high accuracy of ±0.050%. It can be used for precise measurement for low-concentration samples such as Brix% measurement of fruit juice, soft drinks, and cleaning solutions.

Measurement item: Refractive index,Brix(sucrose, high-fructose corn syrup,sugar-free), concentration(%) ,Temperature

Range

Refractive index (nD) : 1.32069 to 1.36500

Brix : 0.000 to 20.000%

Temperature (℃) : -35.0 to 165.0℃

Resolution

Refractive index (nD) : 0.00001

Brix : 0.001% / 0.005% / 0.01%

Temperature (℃) : 0.1℃

Accuracy

Refractive index (nD) : ±0.00001 (1.32069 to 1.33681)

Refractive index (nD) : ±0.00010 (from 1.33682 up)

Brix : ±0.007% (0.000 to 2.000%)

Brix : ±0.050% (from 2.001% up)

Standard sample (sugar solution), when there is no sudden temperature change

Temperature compensation: 5 to 90ﾟC

High and low limit setting: High and low control limits can be set with keys.

Output: RS-232C, DC4 to 20mA

Alarm output: Open-collector output for high- and low-limit settings (Alarm output)

Cable: Between the detection section and calculation display section (15m) (maximum up to 200m)
