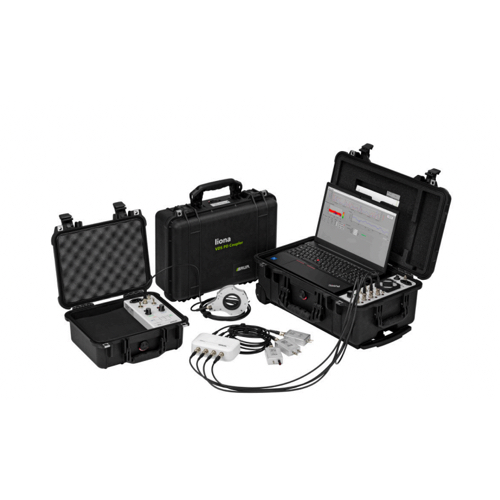

BAUR liona オンラインPDスポットテスター (5 pC – 1,000 nC)

Technical Data - liona Cable PD Measurement System

Measurement Range for Cable PD: 5 pC – 1,000 nC

Number of Signal Inputs: 4

Overvoltage Protection: Up to 500 V

Sampling Rate:

100 MSamples/s

Resolution: 14 bit

Analog Input Voltage Range: ±1.0 V (Resolution 61 µV)

Data Interface: USB 2.0, Ethernet

Power Supply

Mains Voltage: 100 – 240 V, 50/60 Hz

Rechargeable Battery: Lithium-polymer battery, DC 12 V, 8 Ah, 96 Wh

Battery Life: Min. 3 hours

Degree of Protection: IP67 in closed state

Dimensions (W x H x D): Approx. 550 x 350 x 225 mm

Weight: Approx. 13.5 kg

Ambient Temperature (Operational): -10°C to +45°C

Storage Temperature: -20°C to +60°C

Humidity: ≤ 90%, non-condensing

Safety and EMC: CE-compliant in accordance with Low Voltage Directive (2014/35/EU) and EMC Directive (2014/30/EU)

liona Software

Software Modules:

Spot Tester: Used for PD measurement

Mapping: Used for PD mapping

Cable Length: Used to measure the cable length

Operating Modes of the Spot Tester Software Module:

PD TEST: Used for routine and repetitive testing

Scope: Used for in-depth investigation

PD Analysis: PRPD (PD Pattern Analysis), Waveform (Analysis of individual PD pulses)

Noise Separation and PD Classification: DeCIFer® algorithm

Reporting: On screen, PDF

Software Available in: English, German, Chinese, French, Portuguese, Russian, Spanish

Charger

Power Supply: 100 – 240 V, 50/60 Hz

Charging Voltage: 5 V ± 5%

Charging Current: 2,200 mA

General

Degree of Protection (Transport Case): P67 in closed state

Transport Case Dimensions (W x H x D): Approx. 295x146x347 mm

Ambient Temperature (Operational): -10°C to +45°C

Storage Temperature: -20°C to +60°C

Humidity:  ≤ 90%, non-condensing

Standard delivery

▪ liona online PD spot tester, incl.:

– Laptop acc. to quotation with installed liona software

– User manual

– Pocket guide (PDF)

▪ Connection set as selected, see datasheet
