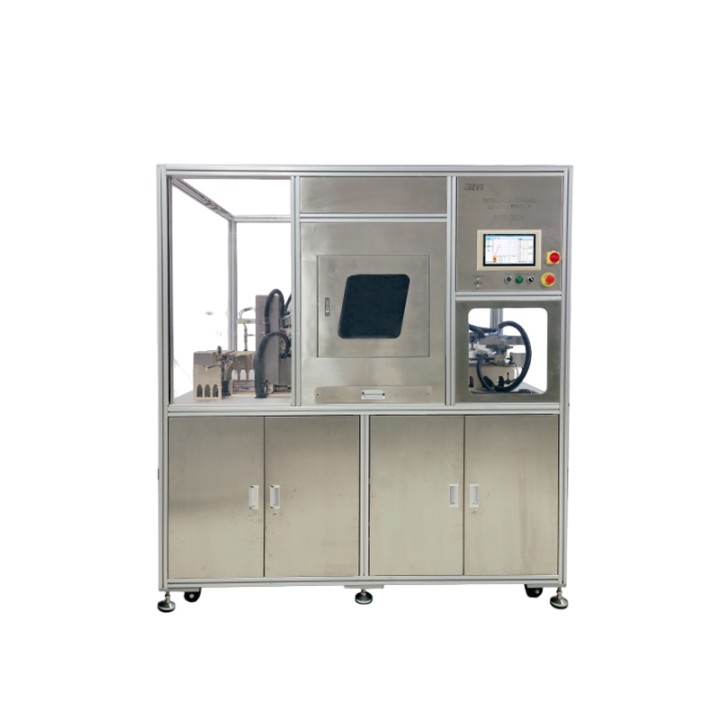

Bevs BEVS 3226N インテリジェントパネルコーティングステーション (1-20000cps, 0.5-0.7Mpa)

Technical info

Applicable paint types: water/solvent based paint

Applicable coating viscosity range: 1-20000cps

Moving speed: X axis 25-250mm/s; Y axis 25-250mm/s

Stroke length: X axis 220mm; Y axis 220mm

Gun distance: 210mm

Atomization air pressure: 0.3-0.7Mpa

System working pressure: 0.5-0.7Mpa

Spraying area: maximum 100X180mm

Spray gun form: no-clean automatic spray gun

Introduction

With Industry 4.0, Made in China 2025 and improving the competitiveness of products and accelerating the speed of research and development, BEVS has developed the BEVS 3226N Intelligent Panel Coating Station to cope with the trend.It is a small and intelligent mobile station developed that integrates intelligent instruments, mechanical actions, automatic control systems, and test materials. It can automatically complete loading and unloading, realize rapid automatic spraying, greatly improve the reproducibility and efficiency of film making, and obtain a uniform film with physical, appearance, and chemical properties of the film. It eliminates various instabilities caused by human factors such as speed, pressure and direction in the film making process, and provides a high-precision test template for testing the rheological properties, abrasion resistance, and hiding power of raw materials.

Features

Real-time data encrypted transmission

Fully automatic

Free combination of instruments and equipment

Remote command anytime, anywhere

Get data, analysis and results reporting anytime, anywhere

Sharing with intelligent, automated workshop production

Shorten research and development, testing cycle

High efficiency and greatly reduced R&D cost

Data saving and output

Compatible with many different paints and realizing rapid automatic film application

Order Info

BEVS 3226N Intelligent Panel Coating Station

Datasheet
