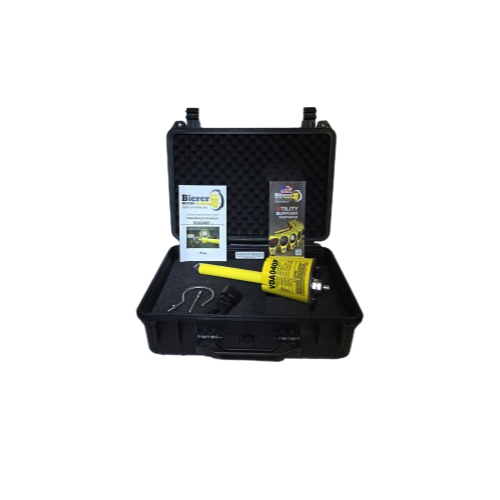

Bierer Meters VDA040P Analog Voltage Detector (500 volt – 40kV)

Product Properties: Shielded Housing, 24Mega Ohm Probe, Self Test Feature in the “T” switch position, Switch positions Calibrated for Height above Ground.

Functional Description: Multi-functional Voltage Detector, Highly Sensitive Proximity position, Calibrated URD and OH Voltage Detection positions allow for more Accurate readings.

Minimum Operating Temperture: 0 degree Fahrenheit (-18 degrees Celsius)

Maximum Operating Temperture: 120 degrees Fahrenheit (49 degrees Celsius)

AC specifications: 500 volts – 40kV

Physical Dimensions: Meter Probe, 14.5 in. long (36.8 centimeters) X 4 in. wide (10.2 centimeters) X 7 in. high (17.8 centimeters)

Weight: 2 lbs. (.9 kilograms) Meter Probe

Applications: Traditional Voltage Detection with better accuracy then conventional Voltage Detectors, along with a Proximity Function to check for EMF emitting from Capacitive Test Points, Failed URD drain wire connections, “Hot or Not” Secondary and Primary voltage Indication
