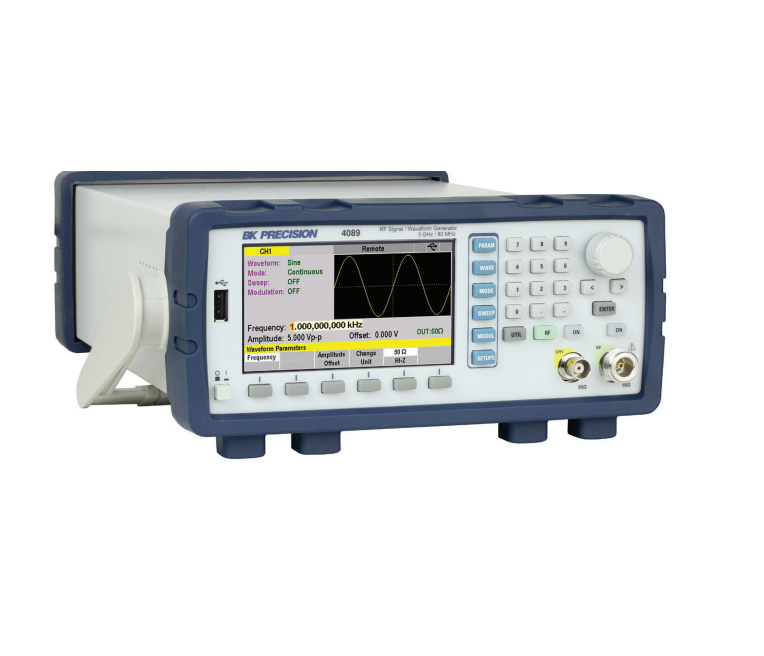

BKPRECISION 4089 RF Signal/Waveform Generator (3 GHz/80 MHz)

RF Characteristics

Frequency Range: 50 MHz to 3 GHz

Frequency Accuracy: ±3 ppm (0 °C to 40 °C)

Spurious (Non-harmonics): −60 dBc @ 0 dBm

Phase Noise: < −117 dBc/Hz (1 GHz carrier @ 10 kHz offset)

Amplitude Range: −110 dBm to +13 dBm (min output < 2 GHz)

Amplitude Level Accuracy: ≤ ±1 dBm (output levels ≥ −90 dBm)

Modulation functions: Analog: AM / FM / PM / Pulse

Arbitrary Waveform

AWG Sample Rate: 250 MSa/s

Vertical Resolution: 16-bit

Maximum Waveform Length: 4 Mpts

Function Generator

Waveforms: Sine, Square, Triangle, Ramp, Pulse

Sine Frequency Range: 1 µHz to 80 MHz

Function Generator Amplitude: 1 mVpp to 10 Vpp into 50 Ω

Function Generator Modulation: AM / FM / PM / PWM / BPSK / FSK

Remote Interface: USB (USBTMC-compliant), LAN,optional GPIB
