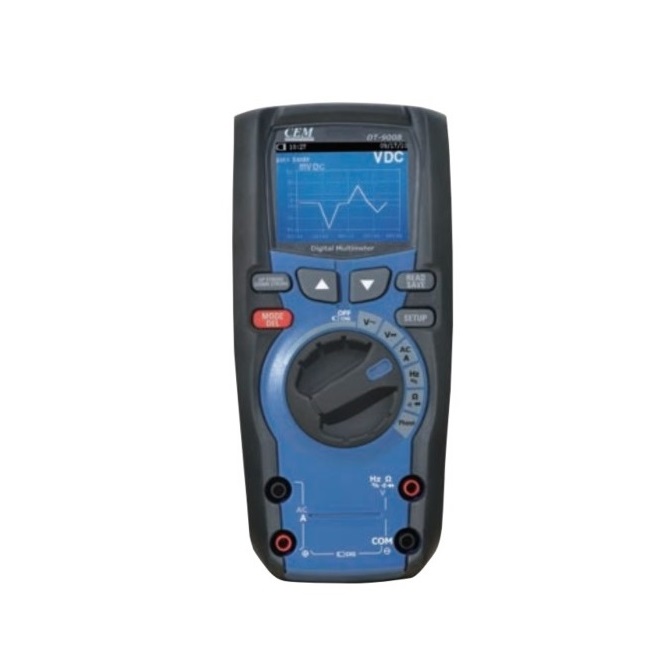

CEM DT-9008 デジタルマルチメータ (700VDC, 300A, ±0.8%rdg+5dgt)

Voltage DC (Range; Resolution; Basic Accuracy): 0V~700V; 0.01V; ±(0.8%rdg+5dgt)

Voltage AC (Range; Resolution; Basic Accuracy): 0V~700V; 0.01V; ±(0.8%rdg+5dgt)

Current AC (Range; Resolution; Basic Accuracy): 1A~300A; 0.1A; ±(2.8%rdg+5dgt)

Resistance (Range; Resolution; Basic Accuracy): 1Ω~10MΩ; 0.1Ω

Phase (Range; Resolution; Basic Accuracy): 0°~360°; 1°; ±3°

Duty Cycle (Range; Resolution; Basic Accuracy): 0.1 - 99.9%; 0.1%

Frequency (Range; Resolution; Basic Accuracy): 10Hz~400Hz; 0.01Hz; ±(2.0%rdg+3dgt)

Measure Phase condition Voltage ：50V~700V/ Current：±(2.8%rdg+5dgt)

Well number: 100number

Data save: 1000

Duty Cycle: ± (1.2% reading +2 digits)

Clock: Year month date

Display: TFT,320 (RGB) x 240

Measurement Rate: 3 times per second

Input impedance: About:10MΩ

Size(HxWxD): 170mm x 79mm x 50mm

Weight: 188g

Accessories:Test leads, Inductive pick-up, 9V battery and gift box with carrying case.
