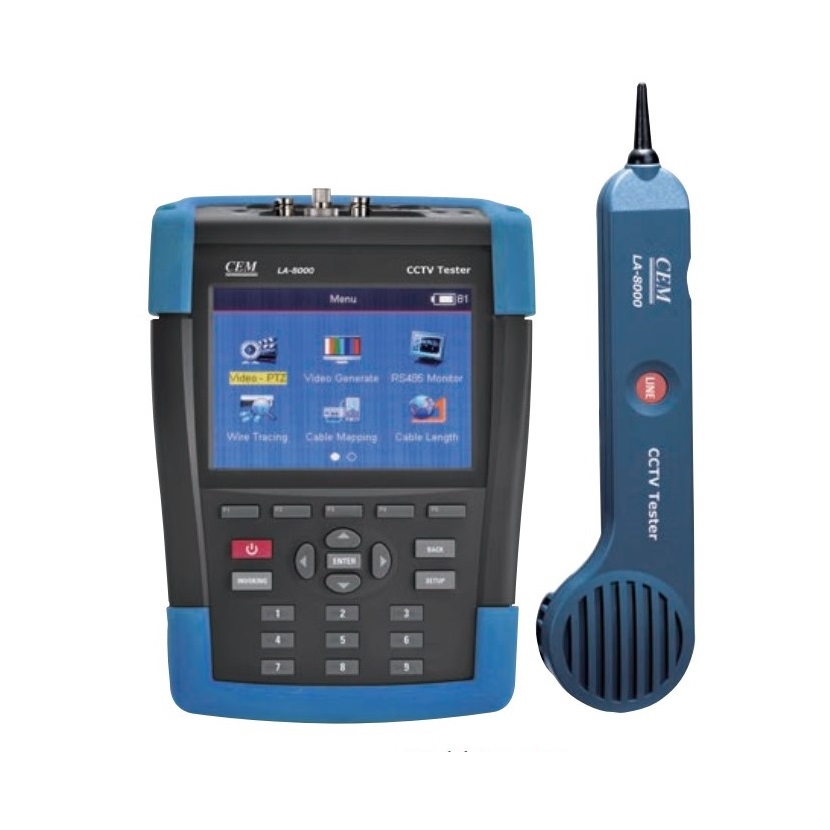

CEM LA-8000 CCTVモニターテスター＆ケーブルテスター＆デジタルマルチメーター

Video Signal Test

Signal Mode: PAL/NTSC automatically suitable

Analog Video Input

Video Signal Output Through the analysis of synchronous level signal attenuation amplitude Independently output 1 channel analog video signal

PTZ Control and Testest

Communication: RS485

Support more than 20 kinds of Protocols

Baud Rate: 2400 4800 9600

Digital Multimeter Test

DC Voltage: Max 1000V Accuracy 0.1V

AC Voltage: Max 750V Accuracy 0.1V

DC Current: Max 10A Accuracy 0.1mA

AC Current: Max 10A Accuracy 0.1mA

Resistance: Max 40MΩ Accuracy 0.1Ω

Diode Polarity Test

Continuity Test

Cable Test

Check open, short, cross reverse wire map for RJ45 and BNC

Trace and locate RJ45 BNC and other metal cables.

Measure the RJ45 and BNC Cable length up to 620 meters, with 98% accuracy

Measurement of power and attenuation in optical fiber transmission

Other Function

Test the RS485 Data sent from controlling device

1 channel audio signal input to test whether the sound is OK

Adjust the screen brightness, contrast, color saturation to adapt different working environment

Dimensions:190mm x 150mm x 48mm

Weight: 230g

Accessories: rechargeable lithium battery, gift box with carrying case.
